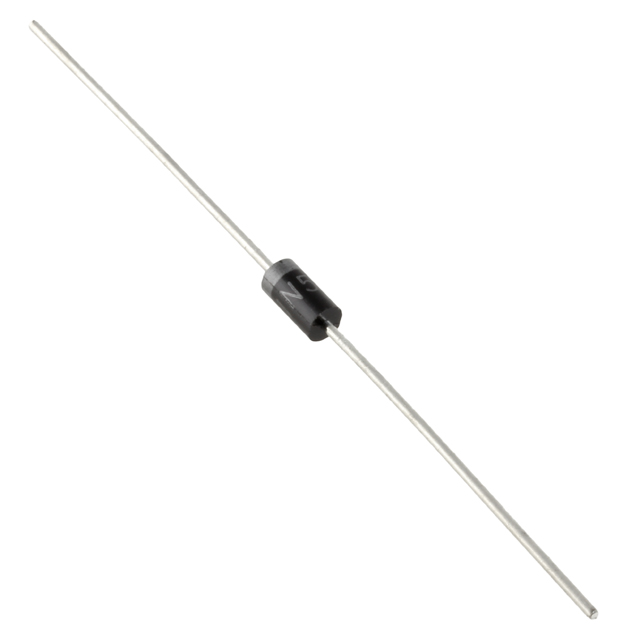

1N4006T-G

Active

Comchip Technology

DIODE GEN PURP 800V 1A DO41

Search across all available documentation for this part.

Active

Comchip Technology

DIODE GEN PURP 800V 1A DO41

Technical Specifications

Parameters and characteristics for this part

Specification	1N4006T-G

Capacitance @ Vr, F	15 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	DO-204AL, DO-41, Axial
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-41
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	800 V
Voltage - Forward (Vf) (Max) @ If	1.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DIODE GEN PURP 800V 1A DO41

Part	Package / Case	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Capacitance @ Vr, F	Speed	Speed	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]
Comchip Technology 1N4006T-G	Axial, DO-204AL, DO-41	5 µA	1 A	15 pF	Standard Recovery >500ns	200 mA	DO-41	150 °C	-55 °C	Standard	Through Hole	1.1 V	800 V

General part information

Diode 800 V 1A Through Hole DO-41

Technical documentation and resources

No documents available
