T604-019.2M
ActiveConnor Winfield
XTAL OSC VCTCXO 19.2000MHZ LVCMO
T604-019.2M
ActiveConnor Winfield
XTAL OSC VCTCXO 19.2000MHZ LVCMO
Description
General part information
T604-019.2M

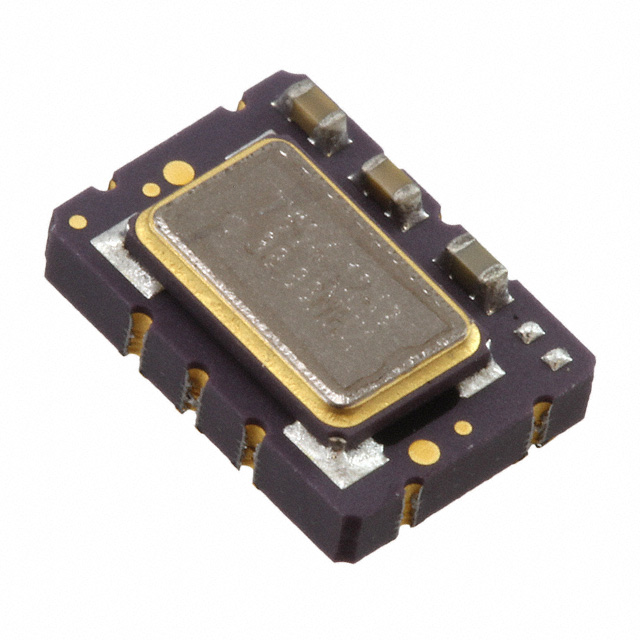

19.2 MHz VCTCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | T604-019.2M |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 6 mA |
| Frequency | 19.2 MHz |
| Frequency Stability | 280 ppb |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.079 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVCMOS |
| Package / Case | 10-SMD, No Lead |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | VCTCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
