L1630PR-010
ActiveAC Connectors
10FT 30A 480V NEMA L16-30 CORD
L1630PR-010
ActiveAC Connectors
10FT 30A 480V NEMA L16-30 CORD
Description
General part information
L1630PR-010

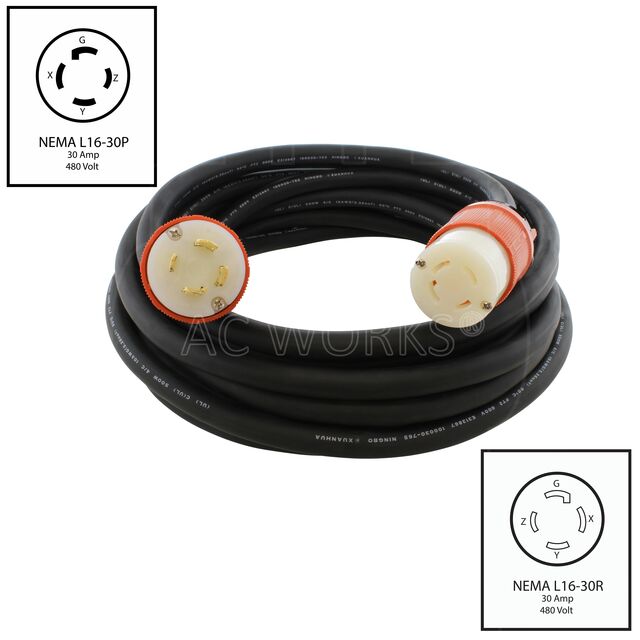

10.00' (3.05m) Power Cord Black NEMA L16-30P To NEMA L16-30R SOOW
Technical Specifications
Parameters and characteristics for this part
| Specification | L1630PR-010 |
|---|---|
| 1st Connector | NEMA L16-30P |
| 2nd Connector | NEMA L16-30R |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SOOW |
| Current Rating | 30 A |
| Features | Outdoor Use |
| Length | 10 ft |
| Number of Conductors | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Shielding | Unshielded |
| Style | Female Plug, Male Plug |
| Voltage Rating | 480 VAC |
| Wire Gauge | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
