FSOT3009ER2500KE
ActiveVishay Huntington Electric Inc.
RES CHAS MNT 0.25 OHM 10% 30W
FSOT3009ER2500KE
ActiveVishay Huntington Electric Inc.
RES CHAS MNT 0.25 OHM 10% 30W
Description
General part information
FSOT3009ER2500KE

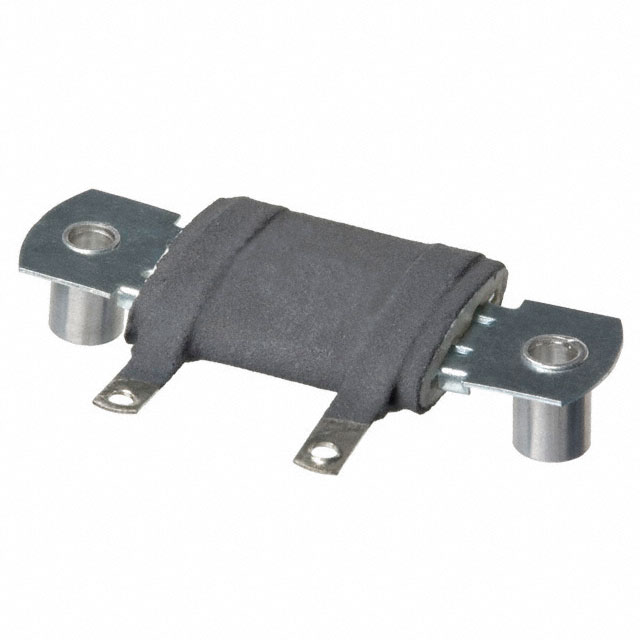

250 mOhms ±10% 30W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | FSOT3009ER2500KE |
|---|---|
| Coating | Silicone Coated |
| Composition | Wirewound |
| Height - Seated (Max) | 0.594 in |
| Housing Type | Silicone Coated |
| Lead Style | Solder Lugs |
| Mounting Feature | Flange Braces, Right Angle |
| Operating Temperature (Max) | 350 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Flat Oval, Radial |
| Power (Watts) | 30 W |
| Resistance | 0.25 Ohms |
| Size / Dimension Length | 1.25 in |
| Size / Dimension Width | 1.187 in |
| Temperature Coefficient | 400 ppm/°C |
| Tolerance | 10 % |
