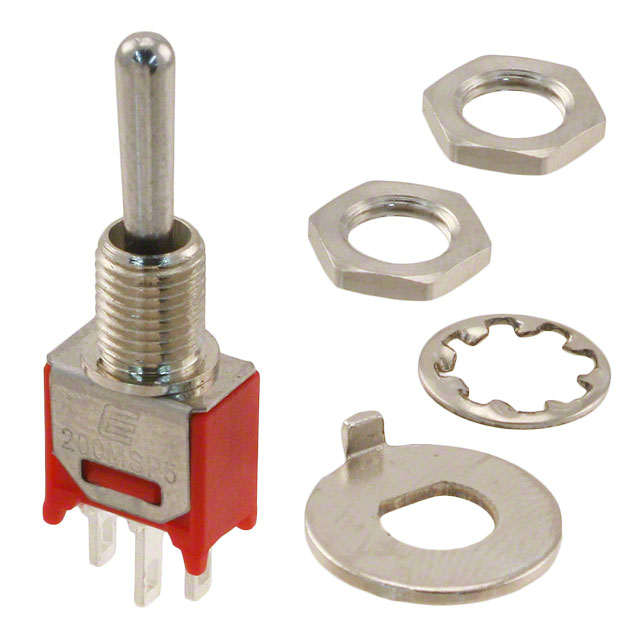

200MSP5T1B1M1QEH

Active

E-Switch

SWITCH TOGGLE SPDT 3A 120V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE SPDT 3A 120V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	200MSP5T1B1M1QEH	200MSP5 Series

Actuator Length [x]	9.4 mm	0.5 - 10.41 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	10-48	1/4-40, 10-48
Circuit	SPDT	SPDT
Current Rating (Amps)	3 A	0.4 - 3 A
Electrical Life	30000 Cycles	30000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	-	Right Angle, Panel Mount, Vertical
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	4.95 mm	0.25 - 4.95 in
Switch Function	On-Off-Mom	On-Off-Mom
Termination Style	Solder Lug	Solder Lug, PC Pin
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

SWITCH TOGGLE SPDT 3A 120V

Part	Circuit	Termination Style	Actuator Material	Features	Actuator Length [x]	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Illumination	Actuator Type	Bushing Thread	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
E-Switch 200MSP5T4B5M1QEH	SPDT	Solder Lug	Brass, Chrome Plated	Epoxy Sealed Terminals	10.41 mm	On-Off-Mom	28 V	120 V	3 A	0.25 in	Non-Illuminated	Standard Round	1/4-40	30000 Cycles	-30 ░C	85 °C
E-Switch 200MSP5T1B1M1QEH	SPDT	Solder Lug	Brass, Chrome Plated	Epoxy Sealed Terminals	9.4 mm	On-Off-Mom	28 V	120 V	3 A	4.95 mm	Non-Illuminated	Standard Round	10-48	30000 Cycles	-30 ░C	85 °C
E-Switch 200MSP5T2B1M6QEH	SPDT	PC Pin	Brass, Chrome Plated	Epoxy Sealed Terminals	5.33 mm	On-Off-Mom	28 V	120 V	3 A	4.95 mm	Non-Illuminated	Standard Round	10-48	30000 Cycles	-30 ░C	85 °C	Panel Mount, Right Angle
E-Switch 200MSP5T4B5M1QE	SPDT	Solder Lug	Brass, Chrome Plated	Epoxy Sealed Terminals	10.41 mm	On-Off-Mom	28 V	120 V	3 A	0.25 in	Non-Illuminated	Standard Round	1/4-40	30000 Cycles	-30 ░C	85 °C
E-Switch 200MSP5T2B1M6REH	SPDT	PC Pin	Brass, Chrome Plated	Epoxy Sealed Terminals	5.33 mm	On-Off-Mom	20 V	20 V	0.4 VA	4.95 mm	Non-Illuminated	Standard Round	10-48	30000 Cycles	-30 ░C	85 °C	Panel Mount, Right Angle
E-Switch 200MSP5T4B1M7QE	SPDT	PC Pin	Brass, Chrome Plated	Epoxy Sealed Terminals	0.5 in	On-Off-Mom	28 V	120 V	3 A	4.95 mm	Non-Illuminated	Standard Round	10-48	30000 Cycles	-30 ░C	85 °C	Panel Mount, Right Angle, Vertical
