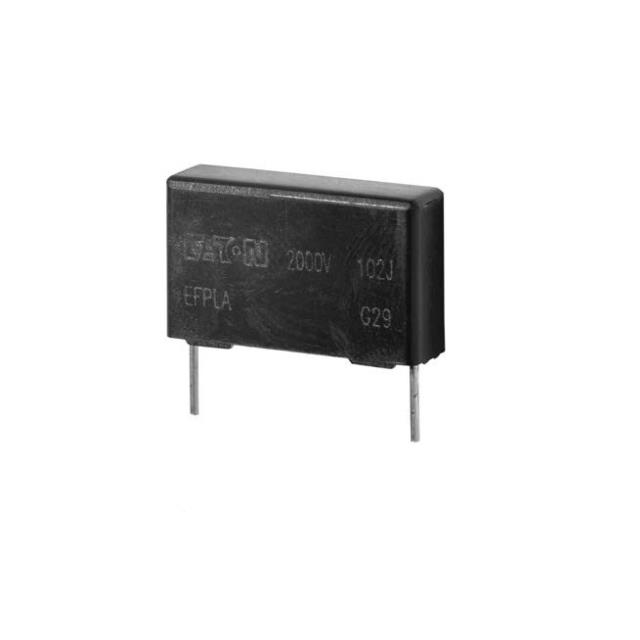

EFPLA1DJ334E022LH
ActiveEaton - Electronics Division
CAP FILM 0.33UF 5% 1300VDC RAD
EFPLA1DJ334E022LH
ActiveEaton - Electronics Division
CAP FILM 0.33UF 5% 1300VDC RAD
Description
General part information
EFPLA1DJ334E022LH
0.33 µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | EFPLA1DJ334E022LH |
|---|---|
| Applications | Automotive, High Frequency, Switching, DV/DT, High Pulse |
| Capacitance | 0.33 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 15 mOhm |
| Height - Seated (Max) | 0.984 in |
| Lead Spacing | 1.476 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 1.654 in |
| Size / Dimension Width | 0.512 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - DC | 1300 V |
