45-2631.2AN0.000

Active

EAO

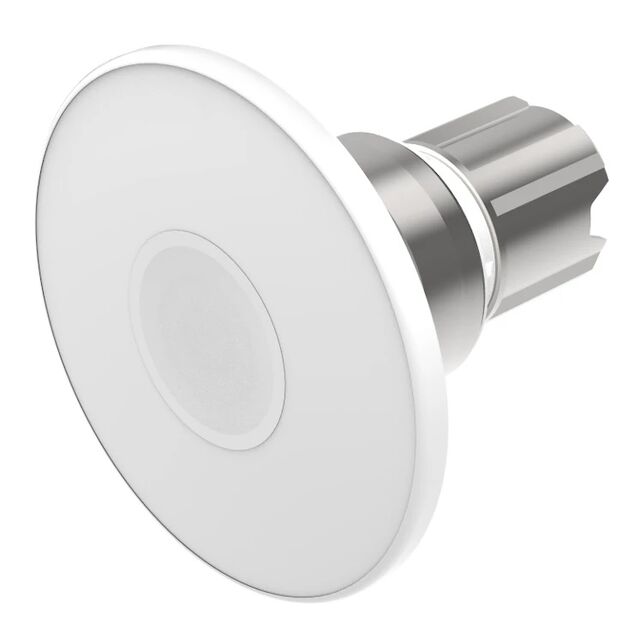

MUSHROOM-HEAD PUSHBUTTON ACTUATOR ILLUMINATED WHITE TRANSPARENT D60 MOMENTARY FRONT/HOUSING METAL

Search across all available documentation for this part.

Active

EAO

MUSHROOM-HEAD PUSHBUTTON ACTUATOR ILLUMINATED WHITE TRANSPARENT D60 MOMENTARY FRONT/HOUSING METAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	45-2631.2AN0.000	45-2631 Series

(Select First, Then Apply Filters) Compatible Series	45, EAO	45, EAO
Actuator Type	Pushbutton, Mushroom	Pushbutton, Mushroom
Illumination	Illuminated - White	Illuminated - Yellow, Illuminated - Green, Illuminated - White, Illuminated - Blue, Illuminated
Panel Cutout Dimensions	22.3 mm	22.3 mm
Requires	Illumination Source, Contact Block(s)	Illumination Source, Contact Block(s)
Type	Momentary	Momentary

CONFIG SWITCH BODY MUSH PB ILLUM

Part	Illumination	Requires	Actuator Type	Panel Cutout Dimensions	(Select First, Then Apply Filters) Compatible Series	Type
EAO 45-2631.18G0.000	Illuminated - Yellow	Contact Block(s), Illumination Source	Pushbutton, Mushroom	22.3 mm	45, EAO	Momentary
EAO 45-2631.2AH0.000	Illuminated - Green	Contact Block(s), Illumination Source	Pushbutton, Mushroom	22.3 mm	45, EAO	Momentary
EAO 45-2631.38N0.000	Illuminated - White	Contact Block(s), Illumination Source	Pushbutton, Mushroom	22.3 mm	45, EAO	Momentary
EAO 45-2631.38H0.000	Illuminated - Green	Contact Block(s), Illumination Source	Pushbutton, Mushroom	22.3 mm	45, EAO	Momentary
EAO 45-2631.18J0.000	Illuminated - Blue	Contact Block(s), Illumination Source	Pushbutton, Mushroom	22.3 mm	45, EAO	Momentary
EAO 45-2631.38K0.000	Illuminated	Contact Block(s), Illumination Source	Pushbutton, Mushroom	22.3 mm	45, EAO	Momentary
EAO 45-2631.18E0.000		Contact Block(s), Illumination Source	Pushbutton, Mushroom	22.3 mm	45, EAO	Momentary
EAO 45-2631.29N0.000	Illuminated - White	Contact Block(s), Illumination Source	Pushbutton, Mushroom	22.3 mm	45, EAO	Momentary
EAO 45-2631.2AG0.000	Illuminated - Yellow	Contact Block(s), Illumination Source	Pushbutton, Mushroom	22.3 mm	45, EAO	Momentary
EAO 45-2631.18H0.000	Illuminated - Green	Contact Block(s), Illumination Source	Pushbutton, Mushroom	22.3 mm	45, EAO	Momentary

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Pushbutton, Mushroom Illuminated - White
