B78148E1332K000
ActiveEPCOS - TDK Electronics
FIXED IND 3.3UH 3.05A 73 MOHM TH
B78148E1332K000
ActiveEPCOS - TDK Electronics
FIXED IND 3.3UH 3.05A 73 MOHM TH
Description
General part information
B78148E1332K000

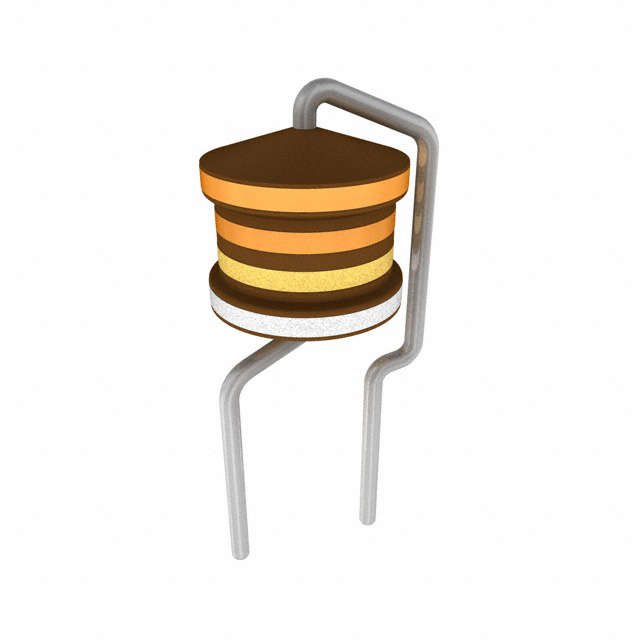

3.3 µH Unshielded Drum Core, Wirewound Inductor 3.05 A 73mOhm Max Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B78148E1332K000 |
|---|---|
| Current - Saturation (Isat) | 3.25 A |
| Current Rating | 3.05 A |
| DC Resistance (DCR) (Max) | 73 mOhm |
| Frequency - Self Resonant | 75 MHz |
| Height - Seated (Max) | 0.453 in |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Q | 45 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.157 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
