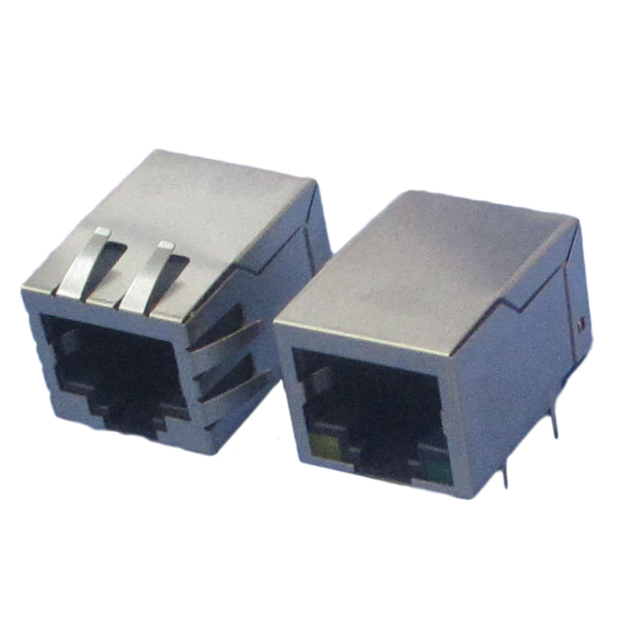

13F-641GGDP2NL

Active

Yuan Dean

CONN RJ45 JACK W/MAG

Search across all available documentation for this part.

Active

Yuan Dean

CONN RJ45 JACK W/MAG

Technical Specifications

Parameters and characteristics for this part

Specification	13F-641GGDP2NL

Applications	10/100 Base-T, AutoMDIX
Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.152 Ám
Contact Finish Thickness	6 Áin
Contact Material	Phosphor Bronze
Features	Solder Retention
Height Above Board	13.84 mm
Height Above Board	0.545 in
Housing Material	Polyamide (PA), Nylon, Glass Filled
LED Color	Green - Green
Mounting Type	Through Hole
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Brass, Nickel Coated
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

CONN RJ45 JACK W/MAG

Part	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Tab Direction	Orientation	Number of Rows	LED Color	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Ports	Features	Mounting Type	Shield Material	Housing Material	Shielding	Contact Finish	Termination	Height Above Board	Height Above Board	Contact Material
Yuan Dean 13F-641GGDP2NL	70 °C	0 °C	10/100 Base-T, AutoMDIX	Down	90 °	1	Green - Green	0.152 Ám	6 Áin	Jack	1	Solder Retention	Through Hole	Brass, Nickel Coated	Polyamide (PA), Nylon, Glass Filled	Shielded, EMI Finger	Gold	Solder	13.84 mm	0.545 in	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	60	$ 9.50

General part information

1 Port JackThrough Hole 10/100 Base-T, AutoMDIX
