CNX722C20005B
ObsoleteVisual Communications Company - VCC

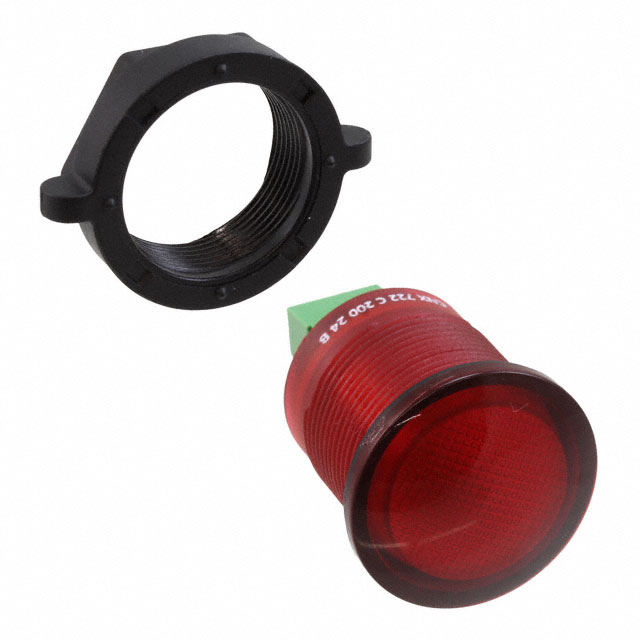

LED 22MM RED 5V SCREW BLK
CNX722C20005B
ObsoleteVisual Communications Company - VCC
LED 22MM RED 5V SCREW BLK
Description
General part information
CNX722C20005B
LED Panel Indicator Red Diffused 5V 20mA
Technical Specifications
Parameters and characteristics for this part
| Specification | CNX722C20005B |
|---|---|
| Current | 20 mA |
| Ingress Protection | NEMA 6P, IP67 |
| Lamp Color | Red |
| Lens Color | Red |
| Lens Diameter | 25.6 mm |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 1600 mcd |
| Panel Cutout Dimension | 0.88 " |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Type | LED |
| Voltage | 5 VDC |
