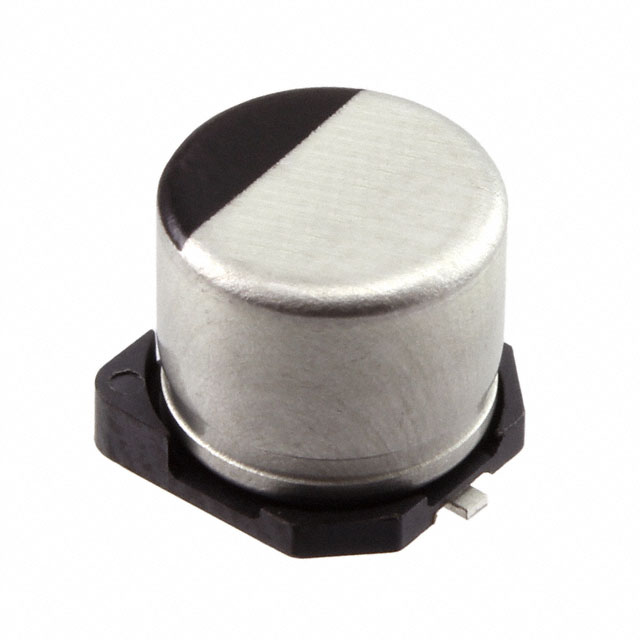

HZA566M025D16T-F
ActiveCornell Dubilier Knowles
CAP ALUM HYBRID 56UF 20% 25V SMD
HZA566M025D16T-F
ActiveCornell Dubilier Knowles
CAP ALUM HYBRID 56UF 20% 25V SMD
Description
General part information
HZA566M025D16T-F
56 µF 25 V Aluminum - Polymer Capacitors Radial, Can - SMD 50mOhm 10000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | HZA566M025D16T-F |
|---|---|
| Applications | Bypass, Decoupling, Automotive |
| Capacitance | 56 µF |
| ESR (Equivalent Series Resistance) | 50 mOhm |
| Height - Seated (Max) | 0.24 in |
| Lifetime | 10000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Can - SMD |
| Ratings | AEC-Q200 |
| Ripple Current | 1.3 A, 130 mA |
| Size / Dimension Diameter | 0.248 in |
| Surface Mount Land Length | 0.26 in |
| Surface Mount Land Width | 0.26 in |
| Tolerance | 20 % |
| Type | Hybrid |
| Voltage - Rated | 25 VAC |
