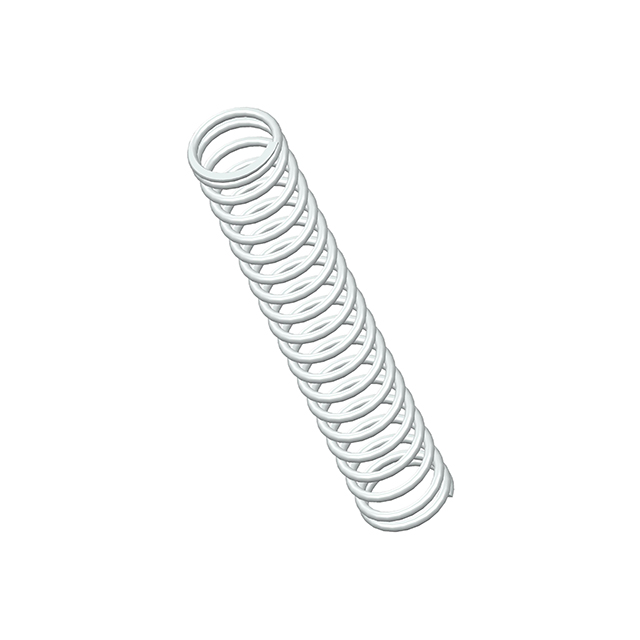

W-40CS
ActiveCentury Spring Corp
COMP O= .453,L= 2.63,W= .047
W-40CS
ActiveCentury Spring Corp
COMP O= .453,L= 2.63,W= .047
Description
General part information
W-40CS
COMP O= .453,L= 2.63,W= .047
Technical Specifications
Parameters and characteristics for this part
| Specification | W-40CS |
|---|---|
| Diameter - Inside | 0.359 in |
| Diameter - Outside | 0.453 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 2.63 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 5.1 lbs/in |
| Type | Compression |
| Wire Diameter | 0.047 in |
