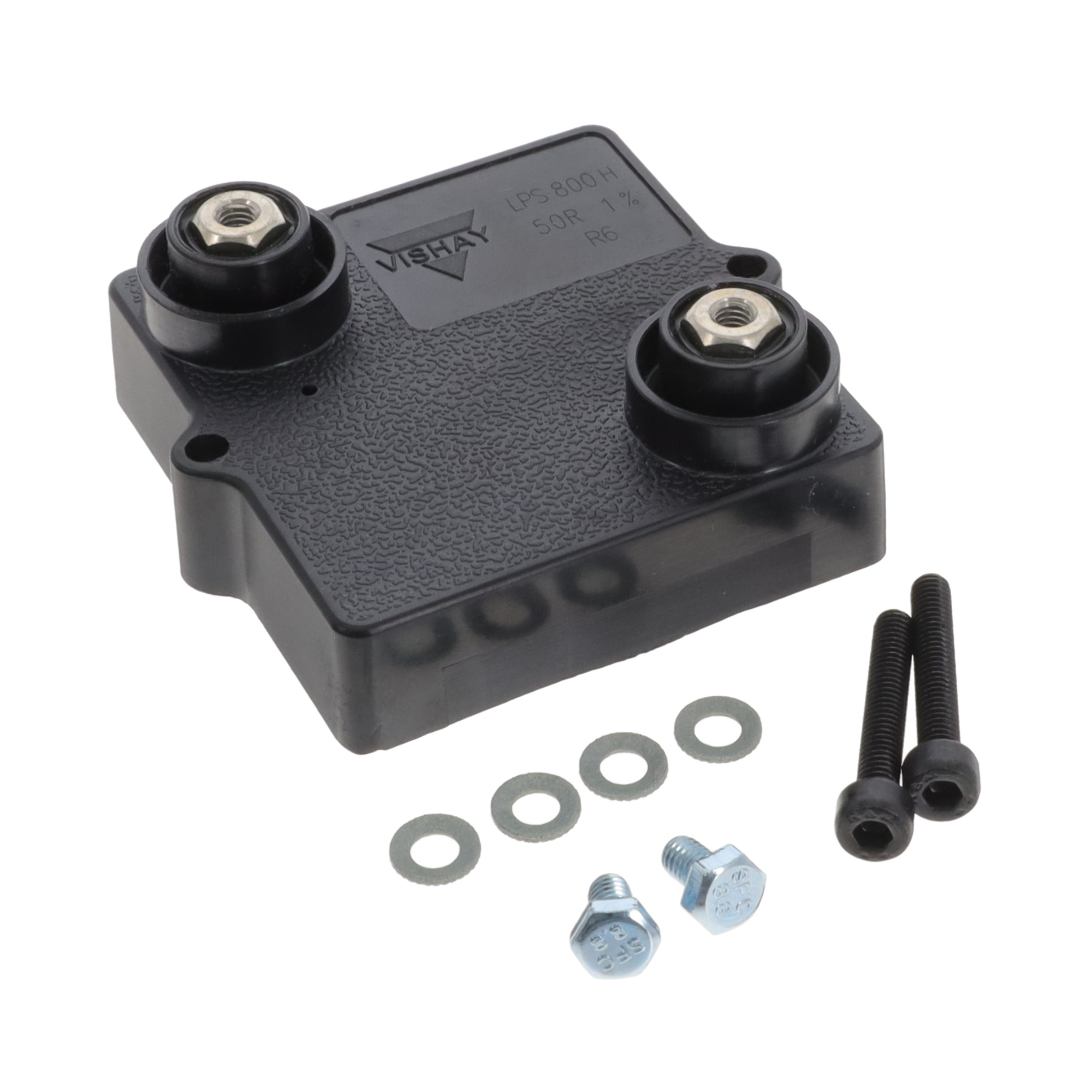

LPS0800H50R0FB
ActiveVishay Dale
RES THICK FILM 50 OHM 1% 800W ±150PPM/°C MOLDED SCREW TERMINAL FLANGE MOUNT BOX
LPS0800H50R0FB
ActiveVishay Dale
RES THICK FILM 50 OHM 1% 800W ±150PPM/°C MOLDED SCREW TERMINAL FLANGE MOUNT BOX
Description
General part information
LPS0800H50R0FB
The LPS800 series from Vishay are thick film power resistors for mounting onto a heatsink. The resistance range includes E24 decade values range from 0.3ohm to 900Kohm with ±1%, ±2%, ±5% and ±10% tolerance.
Technical Specifications
Parameters and characteristics for this part
| Specification | LPS0800H50R0FB |
|---|---|
| Composition | Thick Film |
| Features | Non-Inductive |
| Height - Seated (Max) | 1.055 in |
| Lead Style | M4 Threaded |
| Mounting Feature | Screw Holes |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Box |
| Power (Watts) | 800 W |
| Resistance | 50 Ohms |
| Size / Dimension Length | 2.362 in |
| Size / Dimension Width | 2.244 in |
| Temperature Coefficient | 150 ppm/¯C |
| Tolerance | 1 % |
