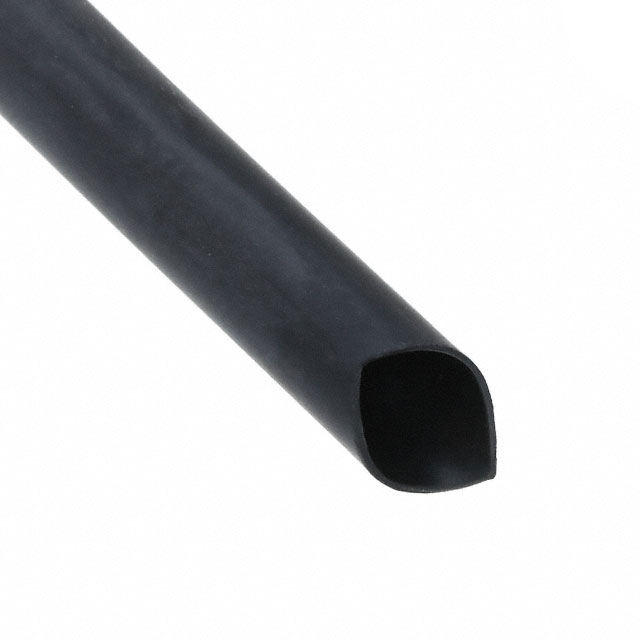

ZHTM-8/4-0-SP

Active

TE Connectivity Aerospace, Defense and Marine

HT SHRINK 0.315" BLACK METER

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

HT SHRINK 0.315" BLACK METER

Technical Specifications

Parameters and characteristics for this part

Specification	ZHTM-8/4-0-SP

Color	Black
Features	Fluid Resistant, Flame Retardant
Inner Diameter - Recovered [diameter]	3.99 mm
Inner Diameter - Recovered [diameter]	0.157 in
Inner Diameter - Supplied [diameter]	8 mm
Inner Diameter - Supplied [diameter]	0.315 in
Length	Enter Number of Meters in Order Quantity
Material	Polyolefin (PO), Irradiated, Halogen Free
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Recovered Wall Thickness	0.031 "
Recovered Wall Thickness	0.79 mm
Shrink Temperature	80 °C
Shrinkage Ratio	2 to 1
Spool Size	196.8 '
Spool Size	60 m
Type	Tubing, Flexible

HT SHRINK 0.315" BLACK METER

Part	Material	Shrinkage Ratio	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrink Temperature	Spool Size	Spool Size	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Color	Features	Length	Recovered Wall Thickness	Recovered Wall Thickness
TE Connectivity Aerospace, Defense and Marine ZHTM-8/4-0-SP	Polyolefin (PO), Irradiated, Halogen Free	2 to 1	3.99 mm	0.157 in	80 °C	196.8 '	60 m	-30 ░C	105 ░C	8 mm	0.315 in	Tubing, Flexible	Black	Flame Retardant, Fluid Resistant	Enter Number of Meters in Order Quantity	0.031 "	0.79 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.315" (8.00mm) 2 to 1 Black Enter Number of Meters in Order Quantity
