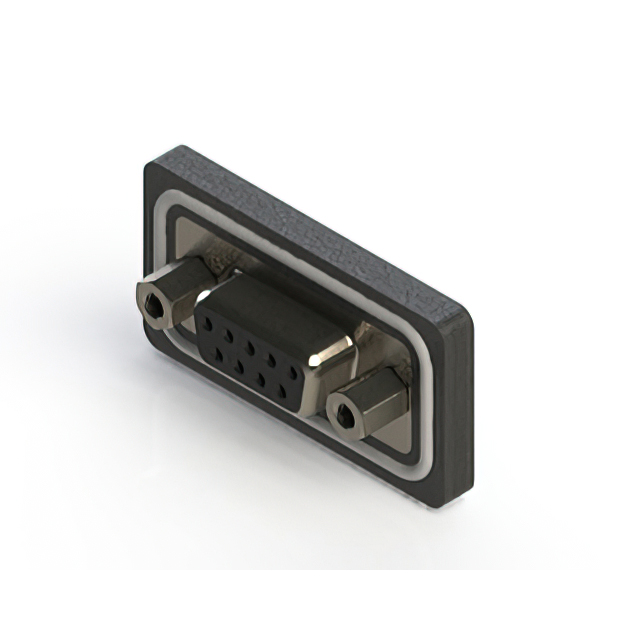

630-W09-640-012

Active

EDAC Inc.

9P FEMALE RIGHT-ANGLE 2 5A -25℃~+85℃ PUSH-PULL D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-W09-640-012

Active

EDAC Inc.

9P FEMALE RIGHT-ANGLE 2 5A -25℃~+85℃ PUSH-PULL D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-W09-640-012

Backset Spacing	0.406 in
Backset Spacing	10.3 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

630-W09 Series

Part	Backset Spacing	Backset Spacing	Connector Style	Current Rating (Amps)	Flange Feature	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Type	Features	Contact Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Ingress Protection	Material Flammability Rating	Contact Type	Number of Rows	Contact Finish Thickness	Shell Material, Finish	Color	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
EDAC Inc. 630-W09-240-015	0.406 in	10.3 mm	D-Sub	5 A	Female Screwlock (4-40) Mating Side	Gold	-25 °C	85 °C	Solder	Panel Mount Right Angle Through Hole	Mounting Brackets	Copper Alloy	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	UL94 V-0	Signal	2	Flash	Nickel Plated Steel	Black	Receptacle Female Sockets
EDAC Inc. 630-W09-240-012	0.406 in	10.3 mm	D-Sub	5 A	Female Screwlock (4-40) Mating Side	Gold	-25 °C	85 °C	Solder	Panel Mount Right Angle Through Hole		Copper Alloy	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	UL94 V-0	Signal	2	Flash	Nickel Plated Steel	Black	Receptacle Female Sockets
EDAC Inc. 630-W09-340-015	0.406 in	10.3 mm	D-Sub	5 A	Female Screwlock (4-40) Mating Side	Gold	-25 °C	85 °C	Solder	Through Hole Right Angle	Mounting Brackets Shielded	Copper Alloy	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	UL94 V-0	Signal	2		Nickel Plated Steel	Black	Receptacle Female Sockets	15 µin	0.38 µm	9
EDAC Inc. 630-W09-640-012	0.406 in	10.3 mm	D-Sub	5 A	Female Screwlock (4-40) Mating Side	Gold	-25 °C	85 °C	Solder	Through Hole Right Angle	Shielded	Copper Alloy	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	UL94 V-0	Signal	2		Nickel Plated Steel	Black	Receptacle Female Sockets	30 Áin	0.76 Ám	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 11.49
LCSC	Piece	1	$ 27.19
		200	$ 10.52
		500	$ 10.15
		1000	$ 9.97

Description

General part information

630-W09 Series

9 Position D-Sub Receptacle, Female Sockets Connector
