Connectors, Interconnects

749611-5

Active

TE Connectivity Raychem Cable Protection

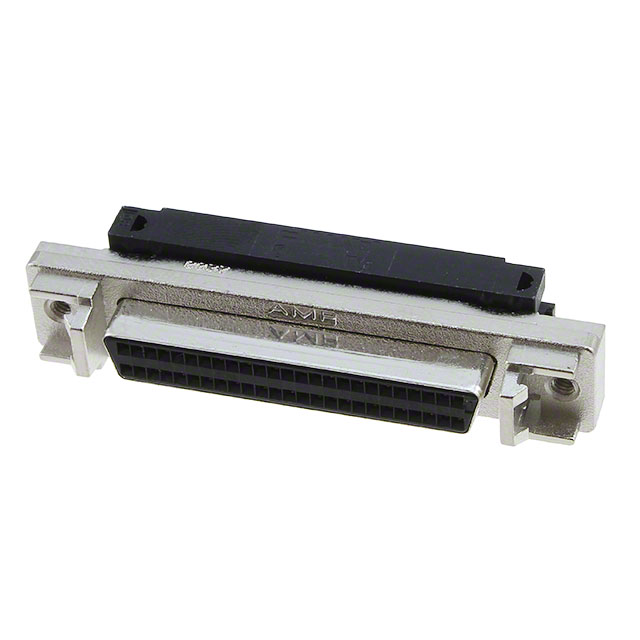

CONN SCSI RCPT 50POS PNL MNT IDC

Search across all available documentation for this part.

Connectors, Interconnects

Active

TE Connectivity Raychem Cable Protection

CONN SCSI RCPT 50POS PNL MNT IDC

Technical Specifications

Parameters and characteristics for this part

Specification	749611-5

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Flange Feature	Latchblocks, Housing/Shell (2-56), Rails
Number of Positions	50
Number of Rows	2
Termination	IDC
Type	SCSI

Part	Termination	Type	Connector Type	Number of Rows	Number of Positions	Contact Finish	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Connector Style
TE Connectivity Raychem Cable Protection 5-749611-9	IDC	SCSI	Receptacle	2	100	Gold	Housing/Shell (2-56) Latchblocks Rails	0.76 Ám	30 Áin	Outer Shroud Contacts
TE Connectivity Raychem Cable Protection 749611-8	IDC	SCSI	Receptacle	2	80	Gold	Housing/Shell (2-56) Latchblocks Rails	0.76 Ám	30 Áin	Outer Shroud Contacts
TE Connectivity Raychem Cable Protection 749611-5	IDC	SCSI	Receptacle	2	50	Gold	Housing/Shell (2-56) Latchblocks Rails	0.76 Ám	30 Áin	Outer Shroud Contacts
TE Connectivity Raychem Cable Protection 749611-1	IDC	SCSI	Receptacle	2	26	Gold	Housing/Shell (2-56) Latchblocks Rails	0.76 Ám	30 Áin	Outer Shroud Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1280	$ 12.98

General part information

50 Position Receptacle Connector SCSI Panel Mount IDC
