XN1E-BV422MR
ActiveEMERGENCY STOP SWITCH, 4PST-2NO, DPST-NC, ON-OFF, SCREW, 5 A, 250 V, 250 V
Deep-Dive with AI
Search across all available documentation for this part.
XN1E-BV422MR
ActiveEMERGENCY STOP SWITCH, 4PST-2NO, DPST-NC, ON-OFF, SCREW, 5 A, 250 V, 250 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XN1E-BV422MR | XN1E Series |
|---|---|---|
| Circuit | 4PST-2NO/2NC | 4PST-2NO/2NC, DPST-NC |
| Current Rating (Amps) | 2 A, 5 A | 2 - 5 A |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 30.5 mm | 30.5 mm |
| Reset Operation | Twist | Twist |
| Switch Function | On-Off, Off-On | On-Off, Off-On |
| Termination Style | Screw Terminal | Screw Terminal |
| Voltage Rating - AC | 125 V | 125 V |
| Voltage Rating - DC | 30 V | 30 V |
XN1E Series
EMERGENCY STOP SWITCH, 4PST-2NO, DPST-NC, ON-OFF, SCREW, 5 A, 250 V, 250 V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Reset Operation | Termination Style | Current Rating (Amps) | Circuit | Mounting Type | Panel Cutout Dimensions [diameter] | Switch Function | Voltage Rating - DC | Voltage Rating - AC | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDEC Corporation XN1E-BV422MR | -25 °C | 60 °C | Twist | Screw Terminal | 2 A, 5 A | 4PST-2NO/2NC | Panel Mount, Front | 30.5 mm | Off-On, On-Off | 30 V | 125 V | IP65 - Dust Tight, Water Resistant |
IDEC Corporation XN1E-BV402MR | -25 °C | 60 °C | Twist | Screw Terminal | 2 A, 5 A | DPST-NC | Panel Mount, Front | 30.5 mm | On-Off | 30 V | 125 V | IP65 - Dust Tight, Water Resistant |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
XN1E Series

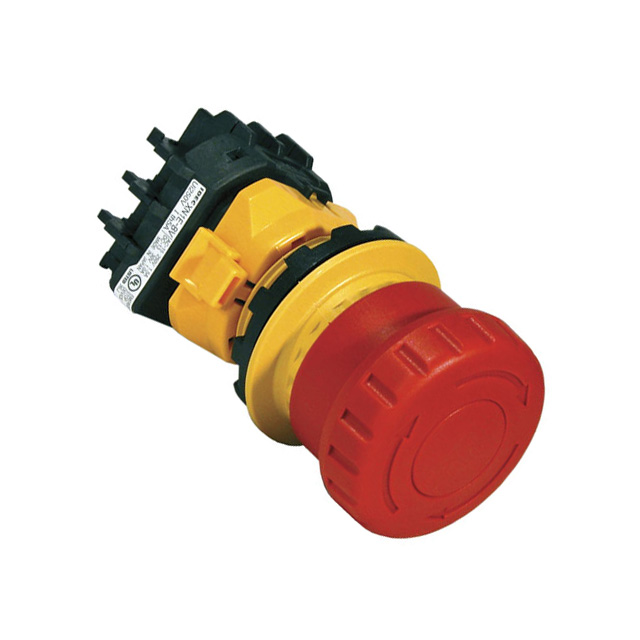

The XN1E-BV422MR is a four-pole single-throw(4PST) 2NO/double-pole single-throw (DPST) 2NC Emergency-stop Switch with mushroom head, push lock-turn reset/push-pull operator and plastic bezel. This XN series non-illuminated switch features gold-plated silver contacts, M3.0 screw terminals, safety-lock mechanism (IEC60947-5-5, 6.2) and direct opening action mechanism (IEC60947-5-5, 5.2, IEC60947-5-1, Annex K). The push-on LED model allows E-stop to be illuminated only when latched. It accepts maximum 16AWG wire.
