CB1.32D-2IPX-5IN
ActiveLighthorse Technologies, Inc
COAX CBL U.FL MHF1 TO U.FL MHF1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CB1.32D-2IPX-5IN
ActiveLighthorse Technologies, Inc
COAX CBL U.FL MHF1 TO U.FL MHF1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CB1.32D-2IPX-5IN | CB1.32 Series |
|---|---|---|
| 1st Connector | U.FL (UMCC), Right Angle, I-PEX MHF1 Plug | Right Angle, IPEX MHF1 Plug, U.FL (UMCC), I-PEX MHF1 Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Contact Gender | Female | Female |
| 2nd Connector | Right Angle, I-PEX MHF1 Plug, U.FL (UMCC) | U.FL (UMCC), IPEX MHF1 Plug, Right Angle, Right Angle, I-PEX MHF1 Plug, U.FL (UMCC) |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Contact Gender | Female | Female |
| Cable Impedance | 50 Ohms | 50 Ohms |
| Cable Type | 1.32mm OD Coaxial Cable DS | 1.32mm OD Coaxial Cable DS |
| Color | Green | Green |
| Features | Double Shielded | Opposite Orientation, Double Shielded |
| Frequency - Max [Max] | 9 GHz | 9 GHz |
| Length | 5 in | 1.5 - 12 in |
| Length | 127 mm | 38.1 - 304.8 mm |
| Length | - | 1 - 12.5 in |
| Length | - | 25.4 - 317.5 mm |
| Operating Temperature [Max] | 90 °C | 90 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Overall Impedance | 50 Ohms | 50 Ohms |
| Style | I-PEX MHF1 to U.FL (UMCC), U.FL (UMCC), I-PEX MHF1 | IPEX MHF1 to U.FL (UMCC), U.FL (UMCC), IPEX MHF1, I-PEX MHF1 to U.FL (UMCC), I-PEX MHF1 |
CB1.32 Series
CBL ASSY IPEX MHF1 PLUG-PLG 9.5"
| Part | 2nd Contact Gender | Cable Impedance | Color | Frequency - Max [Max] | 1st Contact Gender | Length | Length | 2nd Connector | 1st Connector Mounting Type | Cable Type | 2nd Connector Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | 1st Connector | Overall Impedance | Style | Features | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lighthorse Technologies, Inc CB1.32D-2IPX-9.5IN-6O | Female | 50 Ohms | Green | 9 GHz | Female | 9.5 in | 241.3 mm | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Free Hanging (In-Line) | 1.32mm OD Coaxial Cable DS | Free Hanging (In-Line) | 90 °C | -40 °C | IPEX MHF1 Plug, Right Angle, U.FL (UMCC) | 50 Ohms | IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC) | Double Shielded, Opposite Orientation | ||
Lighthorse Technologies, Inc CB1.32D-2IPX-1IN-6O | Female | 50 Ohms | Green | 9 GHz | Female | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Free Hanging (In-Line) | 1.32mm OD Coaxial Cable DS | Free Hanging (In-Line) | 90 °C | -40 °C | IPEX MHF1 Plug, Right Angle, U.FL (UMCC) | 50 Ohms | IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC) | Double Shielded, Opposite Orientation | 1 in | 25.4 mm | ||
Lighthorse Technologies, Inc CB1.32D-2IPX-5IN | Female | 50 Ohms | Green | 9 GHz | Female | 5 in | 127 mm | I-PEX MHF1 Plug, Right Angle, U.FL (UMCC) | Free Hanging (In-Line) | 1.32mm OD Coaxial Cable DS | Free Hanging (In-Line) | 90 °C | -40 °C | I-PEX MHF1 Plug, Right Angle, U.FL (UMCC) | 50 Ohms | I-PEX MHF1, I-PEX MHF1 to U.FL (UMCC), U.FL (UMCC) | Double Shielded | ||
Lighthorse Technologies, Inc CB1.32D-2IPX-2.5IN-6O | Female | 50 Ohms | Green | 9 GHz | Female | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Free Hanging (In-Line) | 1.32mm OD Coaxial Cable DS | Free Hanging (In-Line) | 90 °C | -40 °C | IPEX MHF1 Plug, Right Angle, U.FL (UMCC) | 50 Ohms | IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC) | Double Shielded, Opposite Orientation | 2.5 in | 63.5 mm | ||
Lighthorse Technologies, Inc CB1.32D-2IPX-6IN-6O | Female | 50 Ohms | Green | 9 GHz | Female | 6 in | 152.4 mm | I-PEX MHF1 Plug, Right Angle, U.FL (UMCC), U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Free Hanging (In-Line) | 1.32mm OD Coaxial Cable DS | Free Hanging (In-Line) | 90 °C | -40 °C | I-PEX MHF1 Plug, IPEX MHF1 Plug, Right Angle, U.FL (UMCC) | 50 Ohms | I-PEX MHF1, I-PEX MHF1 to U.FL (UMCC), IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC) | Double Shielded, Opposite Orientation | ||
Lighthorse Technologies, Inc CB1.32D-2IPX-11IN-6O | Female | 50 Ohms | Green | 9 GHz | Female | 11 " | 279.4 mm | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Free Hanging (In-Line) | 1.32mm OD Coaxial Cable DS | Free Hanging (In-Line) | 90 °C | -40 °C | IPEX MHF1 Plug, Right Angle, U.FL (UMCC) | 50 Ohms | IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC) | Double Shielded, Opposite Orientation | ||
Lighthorse Technologies, Inc CB1.32D-2IPX-7IN-6O | Female | 50 Ohms | Green | 9 GHz | Female | 7 in | 177.8 mm | I-PEX MHF1 Plug, Right Angle, U.FL (UMCC) | Free Hanging (In-Line) | 1.32mm OD Coaxial Cable DS | Free Hanging (In-Line) | 90 °C | -40 °C | I-PEX MHF1 Plug, Right Angle, U.FL (UMCC) | 50 Ohms | I-PEX MHF1, I-PEX MHF1 to U.FL (UMCC), U.FL (UMCC) | Double Shielded, Opposite Orientation | ||
Lighthorse Technologies, Inc CB1.32D-2IPX-5.5IN-6O | Female | 50 Ohms | Green | 9 GHz | Female | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Free Hanging (In-Line) | 1.32mm OD Coaxial Cable DS | Free Hanging (In-Line) | 90 °C | -40 °C | IPEX MHF1 Plug, Right Angle, U.FL (UMCC) | 50 Ohms | IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC) | Double Shielded, Opposite Orientation | 5.5 in | 139.7 mm | ||
Lighthorse Technologies, Inc CB1.32D-2IPX-7.5IN | Female | 50 Ohms | Green | 9 GHz | Female | I-PEX MHF1 Plug, Right Angle, U.FL (UMCC) | Free Hanging (In-Line) | 1.32mm OD Coaxial Cable DS | Free Hanging (In-Line) | 90 °C | -40 °C | I-PEX MHF1 Plug, Right Angle, U.FL (UMCC) | 50 Ohms | I-PEX MHF1, I-PEX MHF1 to U.FL (UMCC), U.FL (UMCC) | Double Shielded | 7.5 in | 190.5 mm | ||
Lighthorse Technologies, Inc CB1.32D-2IPX-11.5IN-6O | Female | 50 Ohms | Green | 9 GHz | Female | 11.5 " | 292.1 mm | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Free Hanging (In-Line) | 1.32mm OD Coaxial Cable DS | Free Hanging (In-Line) | 90 °C | -40 °C | IPEX MHF1 Plug, Right Angle, U.FL (UMCC) | 50 Ohms | IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC) | Double Shielded, Opposite Orientation |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.26 | |
| 10 | $ 4.95 | |||
| 25 | $ 4.68 | |||
| 50 | $ 4.43 | |||
| 100 | $ 4.21 | |||
| 250 | $ 3.83 | |||
| 500 | $ 3.51 | |||
Description
General part information
CB1.32 Series

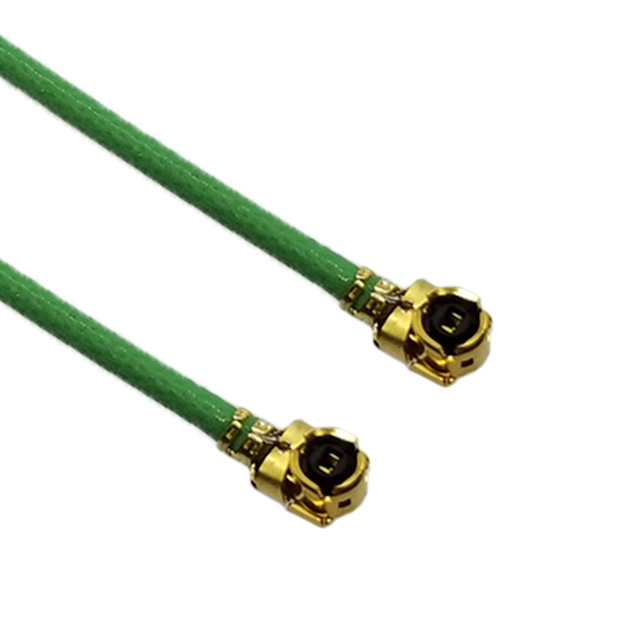

Cable Assembly Coaxial U.FL (UMCC), I-PEX MHF1 to U.FL (UMCC), I-PEX MHF1 1.32mm OD Coaxial Cable DS 5.000" (127.00mm)
