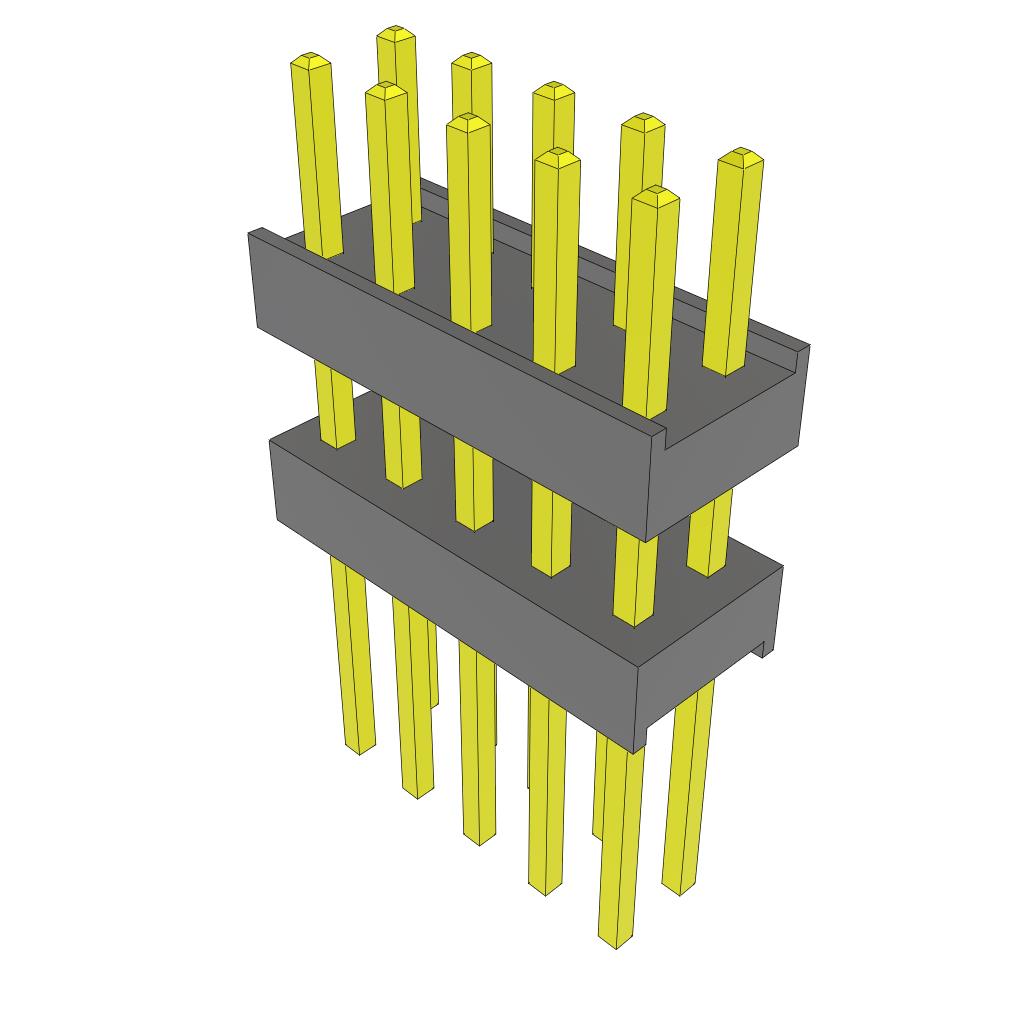

EW-05-10-G-D-330 - EW-05-10-G-D-330

EW-05-10-G-D-330

Active
Samtec Inc.

CONN HDR 10POS 0.1 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEW DatasheetFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch+2
EW-05-10-G-D-330 - EW-05-10-G-D-330

EW-05-10-G-D-330

Active
Samtec Inc.

CONN HDR 10POS 0.1 STACK T/H

Deep-Dive with AI

DocumentsEW DatasheetFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch+2

Technical Specifications

Parameters and characteristics for this part

SpecificationEW-05-10-G-D-330
ColorBlack
Contact Finish - Post (Mating)Gold
Contact Finish Thickness - Post (Mating)0.25 Ám
Contact Finish Thickness - Post (Mating)10 Áin
Length - Overall Pin21.082 mm
Length - Overall Pin [x]0.83 in
Length - Post (Mating) [x]4.318 mm
Length - Post (Mating) [x]0.17 in
Length - Stack Height [x]8.382 mm
Length - Stack Height [x]0.33 in
Length - Tail0.33 in
Length - Tail8.382 mm
Mounting TypeThrough Hole
Number of Positions10
Number of Rows2
Pitch [x]2.54 mm
Pitch [x]0.1 in
Row Spacing2.54 mm
Row Spacing [x]0.1 in
TerminationSolder

EW-05-10 Series

PartLength - Stack Height [x]Length - Stack Height [x]Pitch [x]Pitch [x]Length - TailLength - TailContact Finish Thickness - Post (Mating)Contact Finish Thickness - Post (Mating)Length - Overall Pin [x]Length - Overall PinLength - Post (Mating) [x]Length - Post (Mating) [x]Number of RowsColorTerminationContact Finish - Post (Mating)Mounting TypeRow Spacing [x]Row SpacingNumber of PositionsLength - Stack Height [z]Length - Stack Height [z]
Samtec Inc.
EW-05-10-L-S-400
0.4 in
10.16 mm
2.54 mm
0.1 in
0.33 in
8.382 mm
0.25 Ám
10 Áin
0.83 in
21.082 mm
0.1 in
2.54 mm
1
Black
Solder
Gold
Through Hole
Samtec Inc.
EW-05-10-G-D-290
0.29 in
7.366 mm
2.54 mm
0.1 in
0.33 in
8.382 mm
0.25 Ám
10 Áin
0.83 in
21.082 mm
0.21 in
5.334 mm
2
Black
Solder
Gold
Through Hole
0.1 in
2.54 mm
10
Samtec Inc.
EW-05-10-G-D-330
0.33 in
8.382 mm
2.54 mm
0.1 in
0.33 in
8.382 mm
0.25 Ám
10 Áin
0.83 in
21.082 mm
0.17 in
4.318 mm
2
Black
Solder
Gold
Through Hole
0.1 in
2.54 mm
10
Samtec Inc.
EW-05-10-S-D-400
0.4 in
10.16 mm
2.54 mm
0.1 in
0.33 in
8.382 mm
0.76 µm
30 µin
0.83 in
21.082 mm
0.1 in
2.54 mm
2
Black
Solder
Gold
Through Hole
0.1 in
2.54 mm
10
Samtec Inc.
EW-05-10-L-D-400
0.4 in
10.16 mm
2.54 mm
0.1 in
0.33 in
8.382 mm
0.25 Ám
10 Áin
0.83 in
21.082 mm
0.1 in
2.54 mm
2
Black
Solder
Gold
Through Hole
0.1 in
2.54 mm
10
Samtec Inc.
EW-05-10-L-D-390
2.54 mm
0.1 in
0.33 in
8.382 mm
0.25 Ám
10 Áin
0.83 in
21.082 mm
0.11 in
2.794 mm
2
Black
Solder
Gold
Through Hole
0.1 in
2.54 mm
10
0.39 in
9.906 mm
Samtec Inc.
EW-05-10-F-D-395
0.395 in
10.033 mm
2.54 mm
0.1 in
0.33 in
8.382 mm
0.076 Ám
3 Áin
0.83 in
21.082 mm
0.105 in
2.667 mm
2
Black
Solder
Gold
Through Hole
0.1 in
2.54 mm
10
Samtec Inc.
EW-05-10-S-D-365
0.365 in
9.271 mm
2.54 mm
0.1 in
0.33 in
8.382 mm
0.76 µm
30 µin
0.83 in
21.082 mm
0.135 in
3.429 mm
2
Black
Solder
Gold
Through Hole
0.1 in
2.54 mm
10
Samtec Inc.
EW-05-10-G-D-375
0.375 in
9.525 mm
2.54 mm
0.1 in
0.33 in
8.382 mm
0.25 Ám
10 Áin
0.83 in
21.082 mm
0.125 in
3.175 mm
2
Black
Solder
Gold
Through Hole
0.1 in
2.54 mm
10
Samtec Inc.
EW-05-10-T-D-285
2.54 mm
0.1 in
0.33 in
8.382 mm
0.83 in
21.082 mm
0.215 in
5.791 mm
2
Black
Solder
Tin
Through Hole
0.1 in
2.54 mm
10
0.285 in
7.239 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 2.14

Description

General part information

EW-05-10 Series

10 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
