PCI50-151M-RC
ActiveAllied Components International

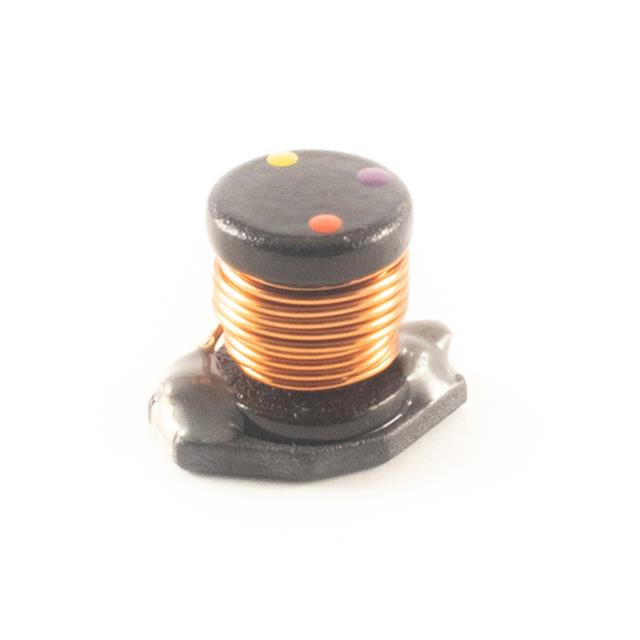

150UH +/-20% POWER CHIP INDUCTOR
PCI50-151M-RC
ActiveAllied Components International
150UH +/-20% POWER CHIP INDUCTOR
Description
General part information
PCI50-151M-RC
150 µH Unshielded Wirewound Inductor 900 mA 340mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PCI50-151M-RC |
|---|---|
| Current - Saturation (Isat) | 2 A |
| Current Rating | 900 mA |
| DC Resistance (DCR) (Max) | 340 mOhm |
| Frequency - Self Resonant | 4 MHz |
| Height - Seated (Max) | 0.45 in |
| Inductance | 150 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.51 in |
| Size / Dimension Width | 0.37 in |
| Tolerance | 20 % |
| Type | Wirewound |
