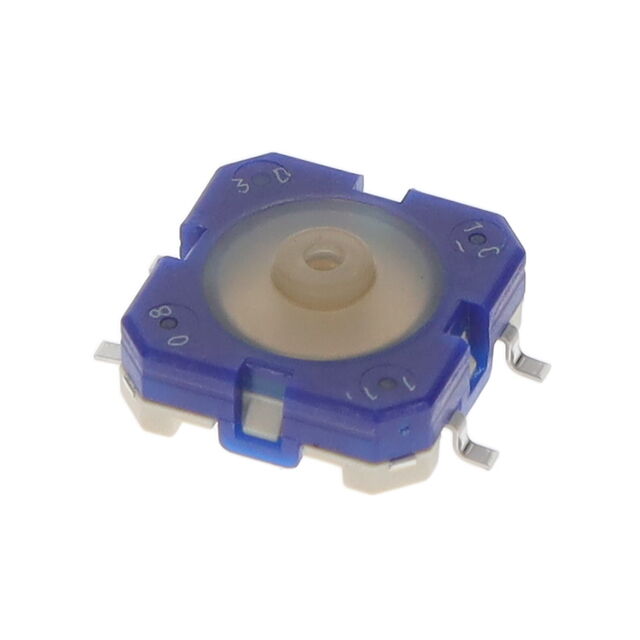

Specification	1.14.012.503/0000

Actuator Height off PCB (Vertical)	4.96 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating (Current)	100 mA
Illumination	Non-Illuminated
Ingress Protection Description	Water Resistant, Dust Protected
Ingress Protection IP Rating	IP54
Mounting Type	Surface Mount
Operating Force	816 gf
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-40 °C
Outline Length	12 mm
Outline Width	12 mm
Switch Function	Off-Mom
Termination Style	SMD (SMT) Tab
Voltage Rating	35VAC, DC

1.14.012 Series

Part	Ingress Protection IP Rating	Ingress Protection Description	Operating Temperature (Max)	Operating Temperature (Min)	Circuit	Switch Function	Outline Width	Outline Length	Operating Force	Actuator Height off PCB (Vertical)	Mechanical Life (Cycles)	Actuator Type	Contact Rating (Current)	Voltage Rating	Termination Style	Actuator Orientation	Illumination	Mounting Type	Switch Travel	Actuator Length (Right Angle)
RAFI Group 1.14.012.502/0000	IP54	Dust Protected Water Resistant	90 °C	-40 °C	SPST-NO	Off-Mom	12 mm	12 mm	816 gf	4.96 mm	1000000 Cycles	Standard	100 mA	35VAC DC	PC Pin	Top Actuated	Non-Illuminated	Through Hole	0.61 mm
RAFI Group 1.14.012.505/0000	IP54	Dust Protected Water Resistant	90 °C	-40 °C	SPST-NO	Off-Mom			816 gf		1000000 Cycles	Standard	100 mA	35VAC DC	PC Pin	Side Actuated	Non-Illuminated	Right Angle Through Hole	0.61 mm	13 mm
RAFI Group 1.14.012.920/0000	IP54	Dust Protected Water Resistant	90 °C	-40 °C	SPST-NO	Off-Mom	12 mm	12 mm	989 gf	4.96 mm		Standard	100 mA	35VAC DC	SMD (SMT) Tab	Top Actuated	Non-Illuminated	Surface Mount
RAFI Group 1.14.012.918/0000	IP54	Dust Protected Water Resistant	90 °C	-40 °C	SPST-NO	Off-Mom	12 mm	12 mm	1020 gf	4.96 mm		Standard	100 mA	35VAC DC	PC Pin	Top Actuated	Non-Illuminated	Through Hole
RAFI Group 1.14.012.601/0000
RAFI Group 1.14.012.803/0000	IP54	Dust Protected Water Resistant	90 °C	-40 °C	SPST-NO	Off-Mom	12 mm	12 mm	816 gf	4.96 mm		Standard	100 mA	35VAC DC	SMD (SMT) Tab	Top Actuated	Non-Illuminated	Surface Mount
RAFI Group 1.14.012.926/0000
RAFI Group 1.14.012.920/0000	IP54	Dust Protected Water Resistant	90 °C	-40 °C	SPST-NO	Off-Mom	12 mm	12 mm	989 gf	4.96 mm	65000 Cycles	Standard	100 mA	35VAC DC	SMD (SMT) Tab	Top Actuated	Non-Illuminated	Surface Mount	0.73 mm
RAFI Group 1.14.012.502/0000	IP54	Dust Protected Water Resistant	90 °C	-40 °C	SPST-NO	Off-Mom	12 mm	12 mm	816 gf	4.96 mm		Standard	100 mA	35VAC DC	PC Pin	Top Actuated	Non-Illuminated	Through Hole
RAFI Group 1.14.012.801/0000
