Description
General part information

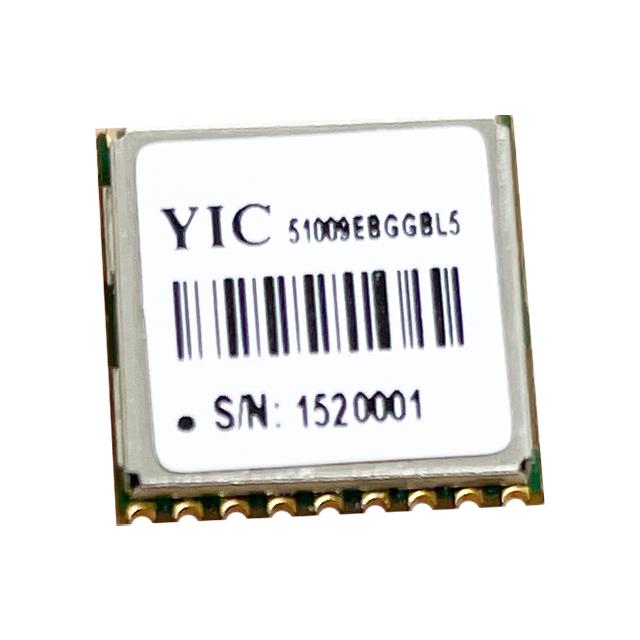

YIC51009EBGGBL5
YIC5 RF Receiver BeiDou, GLONASS, GNSS, GPS -165dBm 921.6kbps Not Included
Technical Specifications
Parameters and characteristics for this part
| Specification | YIC51009EBGGBL5 |
|---|---|
| Antenna Connector | Not Included |
| Applications | Tracking, Fleet Management, Location, Navigation |
| Current - Receiving | 12.7 mA |
| Data Interface | UART, I2C |
| Data Rate (Max) | 921.6 kbps |
| Grade | Automotive |
| Modulation or Protocol | GNSS, GLONASS, GPS, BeiDou, Galileo |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 18-SMD Module |
| Package Length | 9.7 mm |
| Package Name | 18-LCC |
| Package Width | 10.1 mm |
| Sensitivity | -165 dBm |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.8 V |
