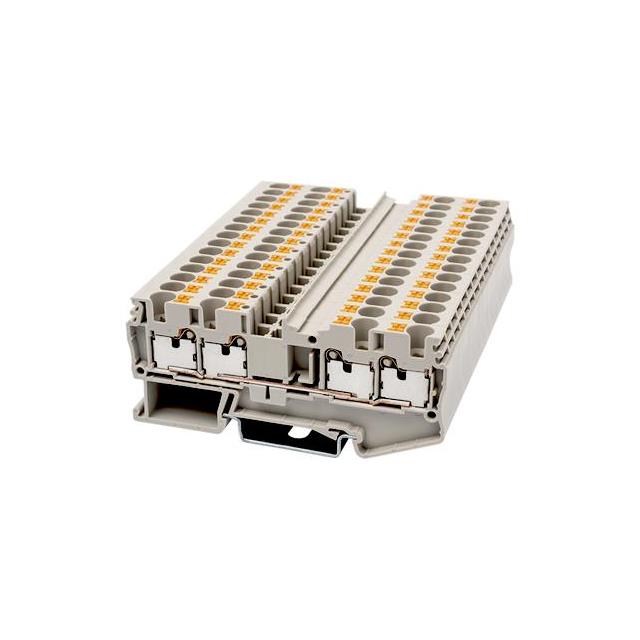

DP4-TR

Active

Dinkle Corporation, USA

PUSH IN TERM BLK FEED THROUGH 24

Search across all available documentation for this part.

Active

Dinkle Corporation, USA

PUSH IN TERM BLK FEED THROUGH 24

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DP4-TR	DP4 Series

Color	Gray	Gray
Current - IEC	32 A	10 - 32 A
Current - UL	30 A	12 - 30 A
Disconnect Type	-	Removable Plug, Fuse
Fuse Type	-	20 mm
Fuse Type	-	5 mm
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Levels	1	1
Number of Positions	4	2 - 4
Stripping Length [x]	12 mm	12 mm
Terminal - Width [y]	6.1 mm	6.1 mm
Termination Style	Push In	Push In
Type	Feed Through	Disconnect, Feed Through
Voltage - IEC	800 V	400 - 800 V
Voltage - UL	600 V	600 V
Voltage - UL	-	300 V
Wire Gauge or Range - AWG [Max]	24 AWG	24 AWG
Wire Gauge or Range - AWG [Min]	10 AWG	10 AWG
Wire Gauge or Range - mm² [Max]	4 mm²	4 - 6 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²	0.2 mm²

PUSH IN TERM BLK DISCONNECT 24~1

Part	Current - UL	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Termination Style	Material Flammability Rating	Number of Levels	Number of Positions	Voltage - UL [custom]	Current - IEC	Voltage - IEC	Fuse Type [y]	Fuse Type [x]	Material - Insulation	Terminal - Width [y]	Stripping Length [x]	Disconnect Type	Type	Color	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - UL
Dinkle Corporation, USA DP4-TFU(5X20)	12 A	0.2 mm²	6 mm²	Push In	UL94 V-0	1	2	300 V	10 A	400 V	20 mm	5 mm	Nylon, Polyamide (PA)	6.1 mm	12 mm	Fuse, Removable Plug	Disconnect	Gray	10 AWG	24 AWG
Dinkle Corporation, USA DP4-TR	30 A	0.2 mm²	4 mm²	Push In	UL94 V-0	1	4		32 A	800 V			Nylon, Polyamide (PA)	6.1 mm	12 mm		Feed Through	Gray	10 AWG	24 AWG	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 4 Position Feed Through Gray 10-24 AWG
