1120-121K-RC
ActiveBourns Inc.
FIXED IND 120UH 4A 90 MOHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1120-121K-RC
ActiveBourns Inc.
FIXED IND 120UH 4A 90 MOHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1120-121K-RC | 1120 Series |
|---|---|---|
| Current Rating (Amps) | 4 A | 1 - 800 A |
| DC Resistance (DCR) | - | 13 - 355 mOhm |
| DC Resistance (DCR) [Max] | 90 mOhm | 1.26 - 818 mOhm |
| Height - Seated (Max) [Max] [z] | 21.34 mm | 21.34 mm |
| Height - Seated (Max) [Max] [z] | 0.84 in | 0.84 in |
| Inductance | - | 1 - 680 µH |
| Material - Core | Ferrite | Ferrite |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | Radial | Radial, Vertical Cylinder, Radial |
| Shielding | Unshielded | Unshielded |
| Tolerance | 10 % | 10 - 20 % |
| Type | Wirewound, Drum Core | Wirewound, Drum Core |
1120 Series
FIXED IND 2.7UH 11.4A 5 MOHM TH
| Part | DC Resistance (DCR) [Max] | Current Rating (Amps) | Shielding | Inductance | Mounting Type | Type | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Tolerance | Package / Case | Material - Core | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. 1120-2R7M | 5 mOhm | 11.4 A | Unshielded | 2.7 µH | Through Hole | Drum Core, Wirewound | 105 ░C | -55 °C | 21.34 mm | 0.84 in | 20 % | Radial, Vertical Cylinder | Ferrite | |
Bourns Inc. 1120-152K-RC | 1.26 Ohm | 800 mA | Unshielded | 1.5 mH | Through Hole | Drum Core, Wirewound | 105 ░C | -55 °C | 21.34 mm | 0.84 in | 10 % | Radial, Vertical Cylinder | Ferrite | |
Bourns Inc. 1120-1R5M | 3 mOhm | 11.4 A | Unshielded | 1.5 µH | Through Hole | Drum Core, Wirewound | 105 ░C | -55 °C | 21.34 mm | 0.84 in | 20 % | Radial, Vertical Cylinder | Ferrite | |
Bourns Inc. 1120-120K | 9 mOhm | 11.4 A | Unshielded | 12 µH | Through Hole | Drum Core, Wirewound | 105 ░C | -55 °C | 21.34 mm | 0.84 in | 10 % | Radial, Vertical Cylinder | Ferrite | |
Bourns Inc. 1120-182K-RC | 1.39 Ohm | 800 mA | Unshielded | 1.8 mH | Through Hole | Drum Core, Wirewound | 105 ░C | -55 °C | 21.34 mm | 0.84 in | 10 % | Radial, Vertical Cylinder | Ferrite | |
Bourns Inc. 1120-220K | 7.2 A | Unshielded | 22 µH | Through Hole | Drum Core, Wirewound | 105 ░C | -55 °C | 21.34 mm | 0.84 in | 10 % | Radial, Vertical Cylinder | Ferrite | 19 mOhm | |
Bourns Inc. 1120-270K | 26 mOhm | 5.5 Amps | Unshielded | 27 µH | Through Hole | Drum Core, Wirewound | 105 ░C | -55 °C | 21.34 mm | 0.84 in | 10 % | Radial, Vertical Cylinder | Ferrite | |
Bourns Inc. 1120-471K-RC | 1.6 A | Unshielded | Through Hole | Drum Core, Wirewound | 105 ░C | -55 °C | 21.34 mm | 0.84 in | 10 % | Radial, Vertical Cylinder | Ferrite | 355 mOhm | ||
Bourns Inc. 1120-181K-RC | 4 A | Unshielded | 180 µH | Through Hole | Drum Core, Wirewound | 105 ░C | -55 °C | 21.34 mm | 0.84 in | 10 % | Radial | Ferrite | 110 mOhm | |
Bourns Inc. 1120-222K-RC | 1.54 Ohm | 800 mA | Unshielded | 2.2 mH | Through Hole | Drum Core, Wirewound | 105 ░C | -55 °C | 21.34 mm | 0.84 in | 10 % | Radial | Ferrite |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 206 | $ 5.45 | |
Description
General part information
1120 Series

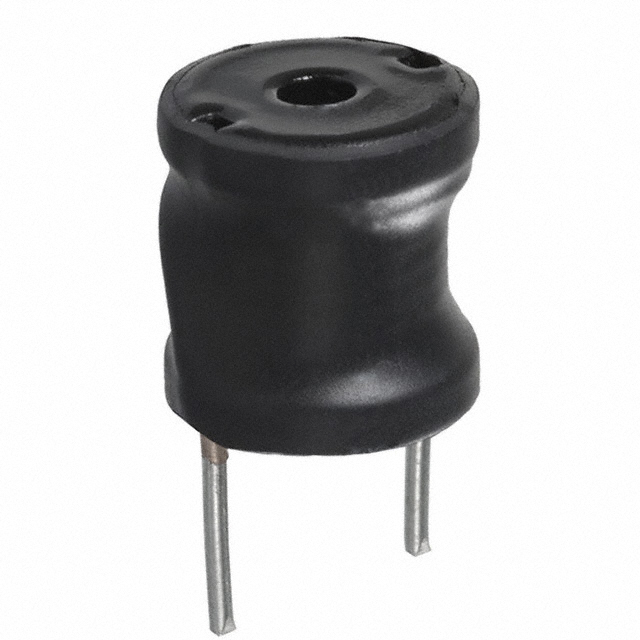

120 µH Unshielded Drum Core, Wirewound Inductor 4 A 90mOhm Max Radial
