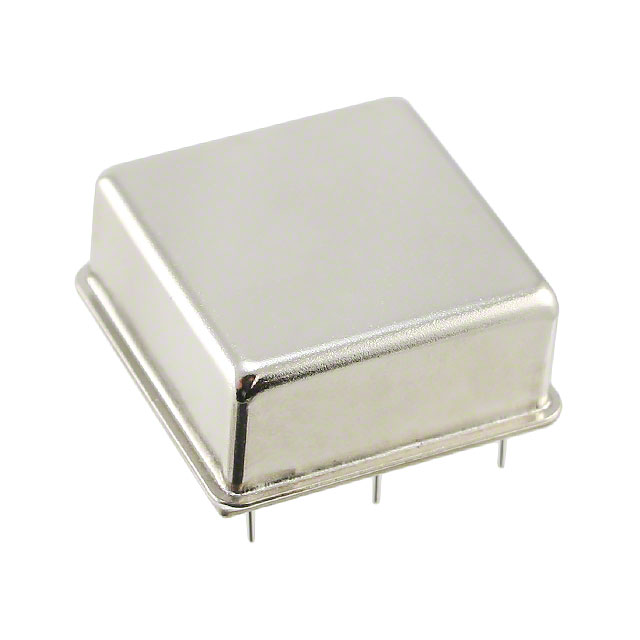

AOCJY3B-100.000MHZ-F-SW
ObsoleteAbracon LLC
XTAL OSC VCOCXO 100.0000MHZ SNWV - TRAY ROHS COMPLIANT: YES
AOCJY3B-100.000MHZ-F-SW
ObsoleteAbracon LLC
XTAL OSC VCOCXO 100.0000MHZ SNWV - TRAY ROHS COMPLIANT: YES
Description
General part information
AOCJY3B-100.000MHZ-F-SW
100 MHz VCOCXO Sine Wave Oscillator 12V 6-DIP (0.750", 19.05mm), 5 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | AOCJY3B-100.000MHZ-F-SW |
|---|---|
| Base Resonator | Crystal |
| Frequency | 100 MHz |
| Frequency Stability | 5 ppb |
| Height - Seated (Max) | 0.512 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Output | Sine Wave |
| Package Features | 5 Leads |
| Package Length | 0.75 in |
| Package Name | 6-DIP |
| Package Width | 19.05 mm |
| Size / Dimension Length | 1 in |
| Size / Dimension Width | 1 in |
| Type | VCOCXO |
| Voltage - Supply | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
