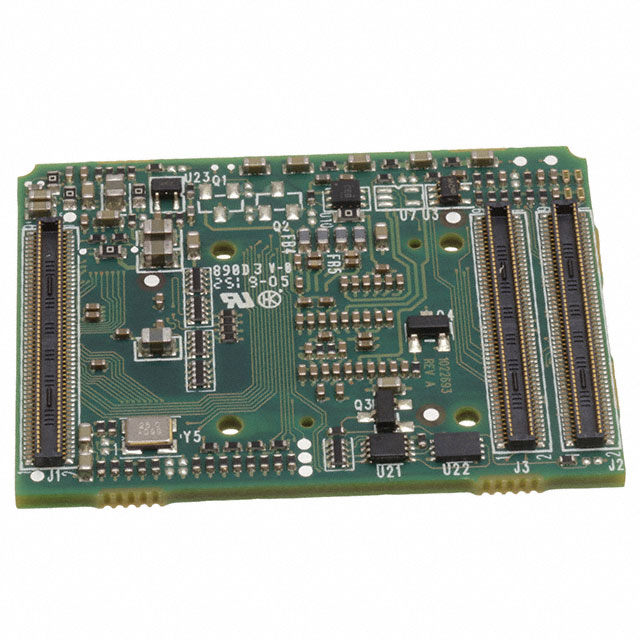

SOMOMAPL138-10-1603AHCR

Active

Beacon EmbeddedWorks

IC MOD OMAP-L138 375MHZ 128MB

Search across all available documentation for this part.

Active

Beacon EmbeddedWorks

IC MOD OMAP-L138 375MHZ 128MB

Technical Specifications

Parameters and characteristics commom to parts in this series

IC MOD OMAP-L138 375MHZ 128MB

Part	RAM Size	Speed	Module/Board Type	Operating Temperature [Max]	Operating Temperature [Min]	Flash Size	Co-Processor	Core Processor	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
Beacon EmbeddedWorks SOMOMAPL138-10-1603QHIR	128 MB	375 MHz	DSP Core, MPU	85 °C	-40 °C	16 MB	TMS320C6748 (DSP)	OMAP-L138	30 mm	1.18 in	40 mm	1.57 in
Beacon EmbeddedWorks SOMOMAPL138-10-1603AHCR	128 MB	375 MHz	DSP Core, MPU	70 °C	-20 C	16 MB	TMS320C6748 (DSP)	OMAP-L138	30 mm	1.18 in	40 mm	1.57 in
Beacon EmbeddedWorks SOMOMAPL138-10-1503QHCR	64 MB	375 MHz	DSP Core, MPU	70 °C	0 °C	16 MB	TMS320C6748 (DSP)	OMAP-L138	30 mm	1.18 in	40 mm	1.57 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

OMAP-L138 Embedded Module OMAP-L138 TMS320C6748 (DSP) 375MHz 128MB 16MB
