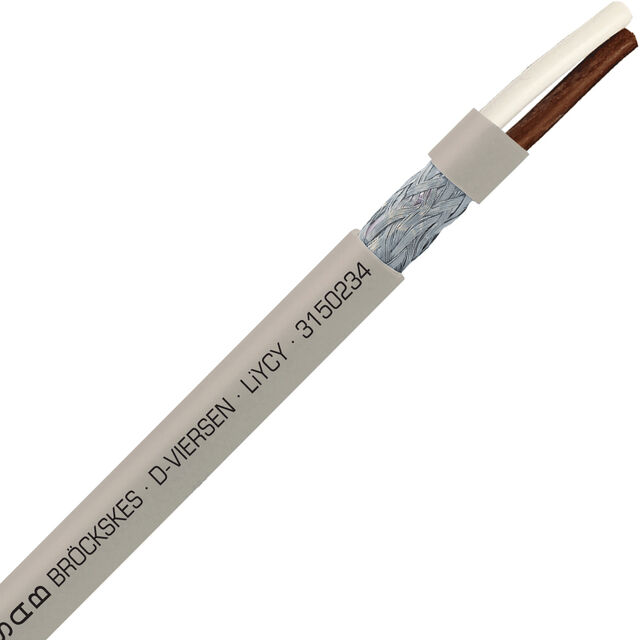

3150234
ActiveSAB North America
CABLE 2COND 22AWG GRY SHLD 1=1FT
3150234
ActiveSAB North America
CABLE 2COND 22AWG GRY SHLD 1=1FT
Description
General part information
3150234
2 Conductor Multi-Conductor Cable Gray 22 AWG Foil, Braid Enter Number of Feet in Order Quantity
Technical Specifications
Parameters and characteristics for this part
| Specification | 3150234 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand Count | 7 Strands |
| Conductor Strand Gauge | 30 |
| Features | Flame Retardant |
| Jacket (Insulation) Diameter | 0.177 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray, Tan |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Shield Material | Copper, Tinned |
| Shield Type | Braid, Foil |
| Usage | Signal, Control |
| Wire Gauge | 22 AWG |
