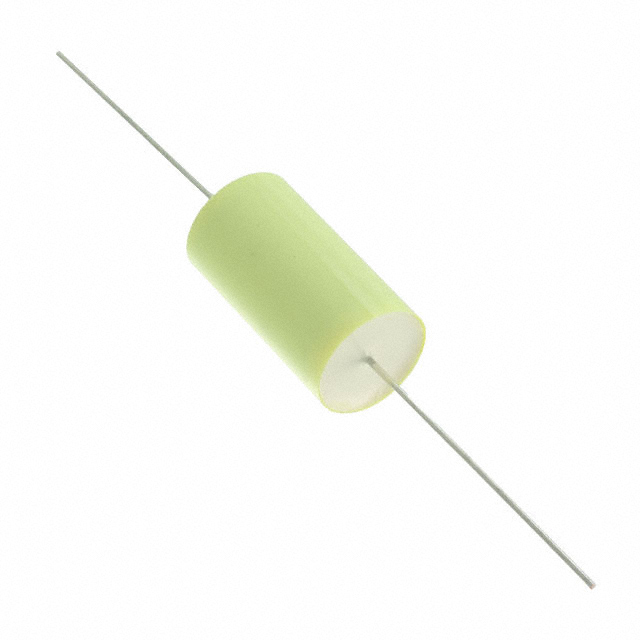

223PPA202K
ActiveCornell Dubilier Knowles
CAP FILM 0.022UF 10% 2KVDC AXIAL
223PPA202K
ActiveCornell Dubilier Knowles
CAP FILM 0.022UF 10% 2KVDC AXIAL
Description
General part information
223PPA202K
0.022 µF Film Capacitor 650V 2000V (2kV) Polypropylene (PP), Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | 223PPA202K |
|---|---|
| Applications | Switching, DC Filtering, Snubber, DC Link, High Frequency |
| Capacitance | 0.022 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 33.5 mOhm |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.433 in |
| Size / Dimension Length | 1.339 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 650 VAC |
| Voltage Rating - DC | 2 kVDC |
