Description
General part information

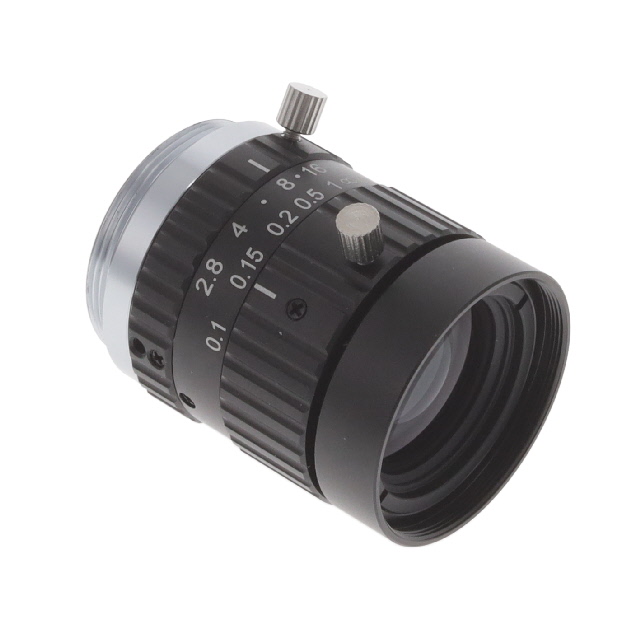

VFA1-230-10M12
Wide Angle Lens F2.8 ~ F16 0.002x ~ 0.109x 2/3" C-Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | VFA1-230-10M12 |
|---|---|
| Compatible Sensor Size (Max) | 0.6666667 in |
| Depth Of Field | 13.8 mm |
| Diameter | 29 mm |
| Field of View Length (Maximum) | 2085 mm |
| Field of View Length (Minimum) | 49.1 mm |
| Field of View Width (Maximum) | 2780 mm |
| Field of View Width (Minimum) | 65.4 mm |
| Filter Mesh | M27 |
| Filter Thickness | 0.5 mm |
| Focal Length | 12 mm |
| Focal Ratio (Max) | 16 |
| Focal Ratio (Min) | 2.8 |
| Length | 32.8 mm |
| Magnification (Max) | 0.109 x |
| Magnification (Min) | 0.002 x |
| Mounting Type | C-Mount |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| TV Distortion (Max) | 0.2 % |
| TV Distortion (Min) | 0.03 % |
| Type | Wide Angle |
| Working Distance (Maximum) | 5000 mm |
| Working Distance (Minimum) | 100 mm |
