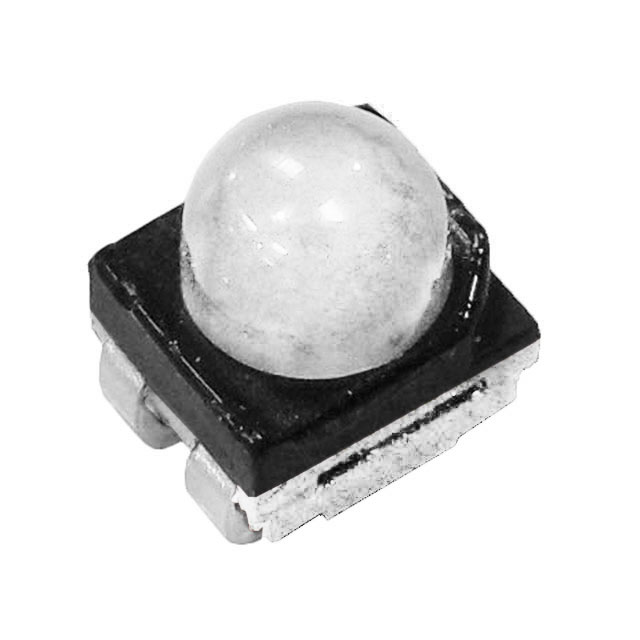

CLM2D-GPC-CB0E0783

Active

Cree LED

SMD LM2-D SERIES LED - GREEN COLOR, 7100-18000MCD,HUE FROM G7 TO G8,TAPE & REEL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.22
		10	$ 0.20
		100	$ 0.19
		1000	$ 0.17
	Digi-Reel®	1	$ 0.22
		10	$ 0.20
		100	$ 0.19
		1000	$ 0.17
	Tape & Reel (TR)	2300	$ 0.17
		57500	$ 0.15
Newark	Each (Supplied on Full Reel)	1	$ 0.23
		3000	$ 0.21
		6000	$ 0.19
		12000	$ 0.17
		18000	$ 0.15
		30000	$ 0.14

Description

General part information

CLM2D Series

Green 528nm LED Indication - Discrete 2.9V 4-PLCC

Documents

Technical documentation and resources

Specification	CLM2D-GPC-CB0E0783	CLM2D Series

Color	Green	Amber, Cyan, Green, Blue, Red
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max)	-	3.55 - 3.72 mm
Height (Max) [Max] [z]	3.65 mm	3.65 mm
Lens Color	White	White
Lens Size	-	2.8 mm
Lens Size	-	3.2 mm
Lens Size [diameter]	2.45 mm	2.45 mm
Lens Style	Round with Domed Top	Round with Domed Top, Rectangle with Domed Top
Lens Transparency	Diffused	Diffused
Millicandela Rating	12550 mcd	900 - 15700 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	4-PLCC	4-PLCC, 4-SMD, J-Lead
Size / Dimension [x]	3.2 mm	3.2 - 3.5 mm
Size / Dimension [y]	2.8 mm	2.8 mm
Supplier Device Package	4-PLCC	4-PLCC
Viewing Angle	30 °	30 °
Voltage - Forward (Vf) (Typ)	2.9 V	2 - 3.2 V
Wavelength - Dominant	528 nm	470 - 622 nm

Part	Wavelength - Dominant	Lens Color	Current - Test	Lens Size [diameter]	Configuration	Height (Max) [Max]	Millicandela Rating	Package / Case	Mounting Type	Lens Style	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Voltage - Forward (Vf) (Typ)	Color	Viewing Angle	Supplier Device Package	Height (Max) [Max] [z]	Lens Size [y]	Lens Size [x]
Cree LED CLM2D-APC-CXBZ0253	590 nm	White	20 mA	2.45 mm	Standard	3.72 mm	3920 mcd	4-PLCC	Surface Mount	Round with Domed Top	2.8 mm	3.2 mm	Diffused	2 V	Amber	30 °	4-PLCC
Cree LED CLM2D-CCC-CZ0C0343	505 nm		20 mA	2.45 mm			7850 mcd	4-PLCC	Surface Mount	Round with Domed Top	2.8 mm	3.2 mm	Diffused	3.2 V	Cyan		4-PLCC	3.65 mm
Cree LED CLM2D-GPC-CB0E0793	525 nm	White	20 mA	2.45 mm	Standard		12550 mcd	4-PLCC	Surface Mount	Round with Domed Top	2.8 mm	3.2 mm	Diffused	2.9 V	Green	30 °	4-PLCC	3.65 mm
Cree LED CLM2D-BEC-CUBWA453	470 nm		20 mA			3.55 mm	900 mcd	4-PLCC	Surface Mount	Rectangle with Domed Top	2.8 mm	3.2 mm	Diffused	2.9 V	Blue		4-PLCC		2.8 mm	3.2 mm
Cree LED CLM2D-REC-CXAYABB3	621 nm		20 mA			3.55 mm	2000 mcd	4-PLCC	Surface Mount	Rectangle with Domed Top	2.8 mm	3.2 mm	Diffused	2.1 V	Red		4-PLCC		2.8 mm	3.2 mm
Cree LED CLM2D-GEC-CYAA0793	528 nm		20 mA			3.55 mm	4000 mcd	4-PLCC	Surface Mount	Rectangle with Domed Top	2.8 mm	3.2 mm	Diffused	2.8 V	Green		4-PLCC		2.8 mm	3.2 mm
Cree LED CLM2D-REC-CWBYABB3	621 nm		20 mA			3.55 mm	2000 mcd	4-PLCC	Surface Mount	Rectangle with Domed Top	2.8 mm	3.2 mm	Diffused	2.1 V	Red		4-PLCC		2.8 mm	3.2 mm
Cree LED CLM2D-GCC-CB0F0793	528 nm		20 mA	2.45 mm		3.72 mm	12000 mcd	4-SMD, J-Lead	Surface Mount	Round with Domed Top	2.8 mm	3.5 mm	Diffused	2.9 V	Green
Cree LED CLM2D-GEC-CYAA0893	528 nm		20 mA			3.55 mm	4000 mcd	4-PLCC	Surface Mount	Rectangle with Domed Top	2.8 mm	3.2 mm	Diffused	2.8 V	Green		4-PLCC		2.8 mm	3.2 mm
Cree LED CLM2D-GEC-CYBA0893	528 nm		20 mA			3.55 mm	4000 mcd	4-PLCC	Surface Mount	Rectangle with Domed Top	2.8 mm	3.2 mm	Diffused	2.8 V	Green		4-PLCC		2.8 mm	3.2 mm
