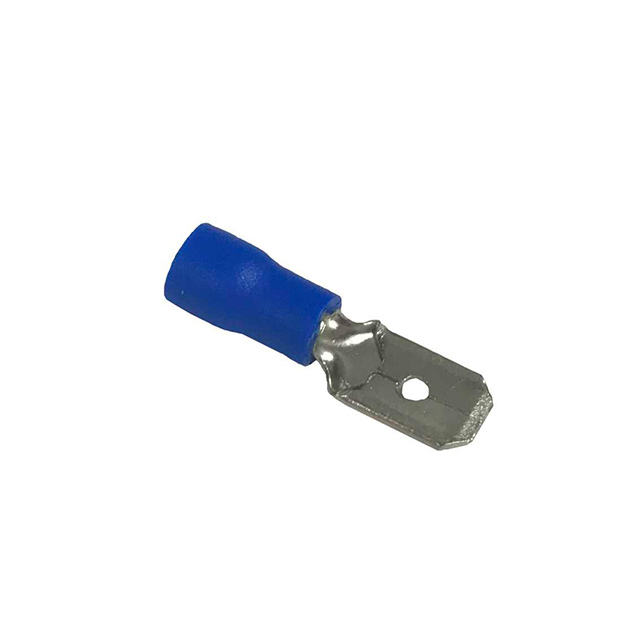

MDD2-250-10
ActiveRemington Industries
QUICK CONNECT TERM MALE 10PCS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MDD2-250-10
ActiveRemington Industries
QUICK CONNECT TERM MALE 10PCS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MDD2-250-10 | MDD2 Series |
|---|---|---|
| Color | Blue | Blue |
| Contact Finish | Tin | Tin |
| Contact Material | Brass | Brass |
| Gender | Male | Male |
| Insulation | Insulated | Insulated |
| Length - Overall [x] | 0.827 in | 0.827 in |
| Length - Overall [x] | 21 mm | 21 mm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Tab Length | 11 mm | 11 mm |
| Tab Length | 0.433 in | 0.433 in |
| Tab Thickness | 0.032 in | 0.032 in |
| Tab Thickness | 0.81 mm | 0.81 mm |
| Tab Width | 6.35 mm | 6.35 mm |
| Tab Width | 0.25 in | 0.25 in |
| Terminal Type | Standard | Standard |
| Termination | Crimp | Crimp |
MDD2 Series
QUICK CONNECT TERM MALE 10PCS
| Part | Tab Length | Tab Length | Length - Overall [x] | Length - Overall [x] | Color | Mounting Type | Gender | Insulation | Termination | Tab Thickness | Tab Thickness | Contact Finish | Terminal Type | Tab Width | Tab Width | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Remington Industries MDD2-250-10 | 11 mm | 0.433 in | 0.827 in | 21 mm | Blue | Free Hanging (In-Line) | Male | Insulated | Crimp | 0.032 in | 0.81 mm | Tin | Standard | 6.35 mm | 0.25 in | Brass |
Remington Industries MDD2-250-100 | 11 mm | 0.433 in | 0.827 in | 21 mm | Blue | Free Hanging (In-Line) | Male | Insulated | Crimp | 0.032 in | 0.81 mm | Tin | Standard | 6.35 mm | 0.25 in | Brass |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.51 | |
Description
General part information
MDD2 Series
0.250" (6.35mm) Quick Connect Male 14-16 AWG Crimp Connector Insulated
Documents
Technical documentation and resources
