Description
General part information

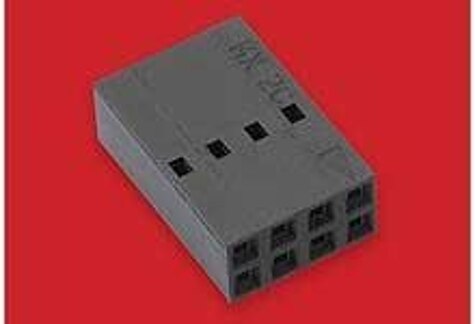

0022552201
HEADERS & WIRE HOUSINGS SL 2.54MM CRMP HSG 2X10 VERS A
Technical Specifications
Parameters and characteristics for this part
| Specification | 0022552201 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Polyester, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
| Row Spacing | 0.1 in |
