BXM-36RED

Active

E-Z-Hook

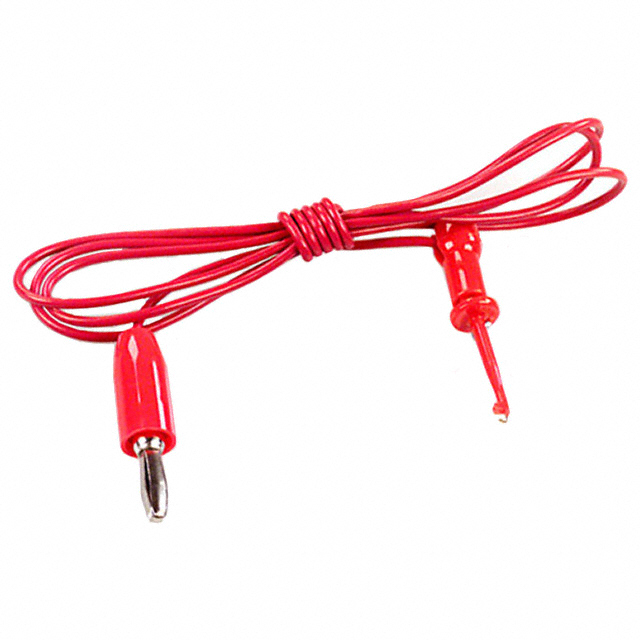

TEST LEAD BANANA TO GRABBER 36"

Search across all available documentation for this part.

Active

E-Z-Hook

TEST LEAD BANANA TO GRABBER 36"

Technical Specifications

Parameters and characteristics commom to parts in this series

TEST LEAD BANANA/GRAB 36" SET/10

Part	Type	2nd Connector	Voltage - Rated	Voltage - Rated	Configuration	Stacking Method	1st Connector	Material - Insulation	Contents	Contents	Cable Length	Cable Length	Wire Gauge	Current Rating (Amps)	Contents [custom]
E-Z-Hook BXM-36-S	Patch Cord	Micro Hook	1 kV	1000 V	Banana to Grabber, Hook	Non Stackable	Banana Plug, Single	Poly-Vinyl Chloride (PVC)	Multiple Colors	10 Leads	36 in	914.4 mm	22 AWG	2.5 A
E-Z-Hook BXM-36RED	Patch Cord	Micro Hook	1 kV	1000 V	Banana to Grabber, Hook	Non Stackable	Banana Plug, Single	Poly-Vinyl Chloride (PVC)	Red		36 in	914.4 mm	22 AWG	2.5 A	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

36.0" (914.40mm) Banana Plug, Single To Micro Hook Patch Cord 1000V (1kV)
