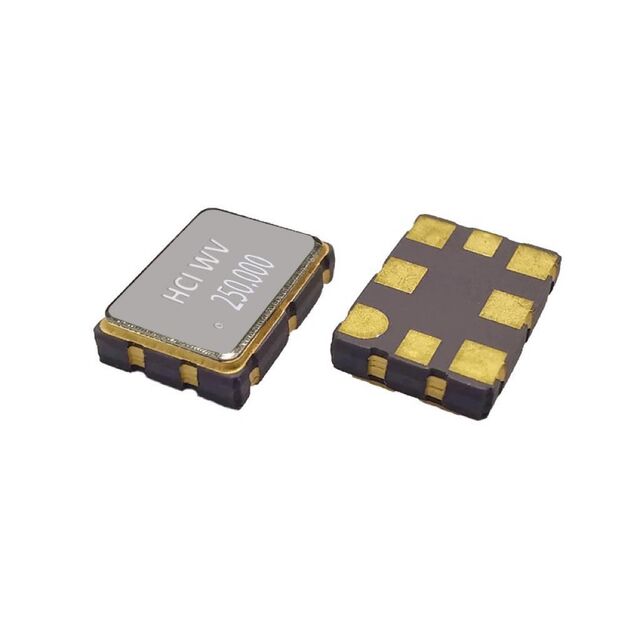

CO75P8-250.000-25JDTST-ED2GKCS
ActiveSuzhou Hangjing Elec&Tech Co.,Ltd
OSCILLATOR SMD 7X5, 250MHZ,LVPEC
CO75P8-250.000-25JDTST-ED2GKCS
ActiveSuzhou Hangjing Elec&Tech Co.,Ltd
OSCILLATOR SMD 7X5, 250MHZ,LVPEC
Description
General part information
CO75P8-250.000-25JDTST-ED2GKCS
Oscillator
Technical Specifications
Parameters and characteristics for this part
| Specification | CO75P8-250.000-25JDTST-ED2GKCS |
|---|---|
| Base Resonator | Crystal |
| Frequency | 250 MHz |
| Frequency Stability | 30 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.039 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVPECL |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V |
