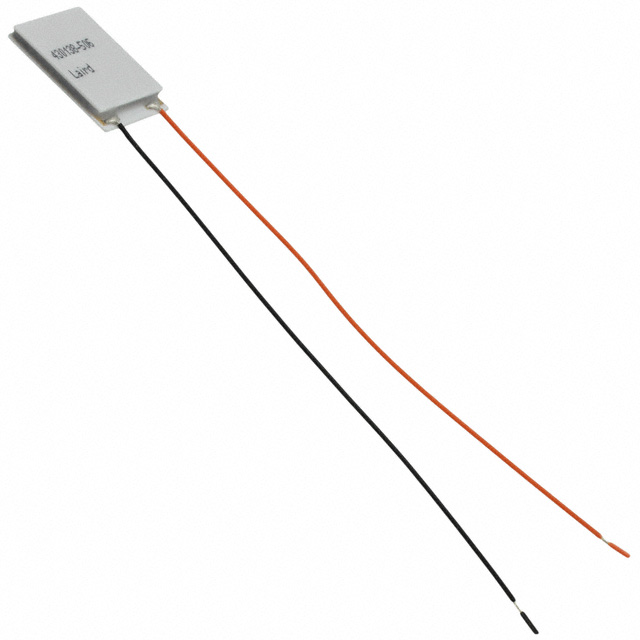

430138-506
ObsoleteLaird Thermal Systems, Inc.
PELTIER HT2,12,F2,3030,TA,RT,W6
430138-506
ObsoleteLaird Thermal Systems, Inc.
PELTIER HT2,12,F2,3030,TA,RT,W6
Description
General part information
430138-506
Peltier Module 19.5W @ 25°C 2.3 A 175°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 430138-506 |
|---|---|
| Current - Max | 2.3 A |
| Delta Tmax | 63 °C |
| Features | Silicone RTV, Lead Wires, Sealed |
| Height | 3.58 mm |
| Maximum Power Dissipation (Qmax) | 19.5 W |
| Number of Stages | 1 |
| Operating Temperature | 175 °C |
| Resistance | 5.76 Ohms |
| Size / Dimension Length | 34 mm |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 30 mm |
| Voltage - Max | 14.4 V |
