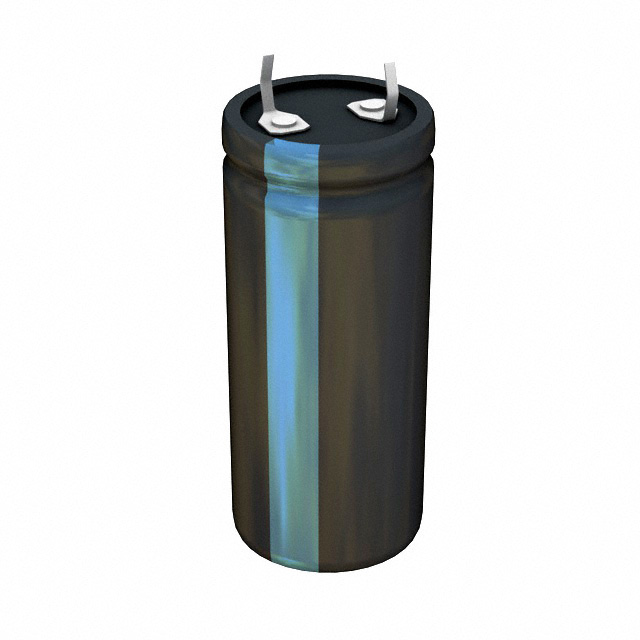

381LX822M035H052
ObsoleteCornell Dubilier Knowles
CAP ALUM 8200UF 20% 35V SNAP TH
381LX822M035H052
ObsoleteCornell Dubilier Knowles
CAP ALUM 8200UF 20% 35V SNAP TH
Description
General part information
381LX822M035H052
8200 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 381LX822M035H052 |
|---|---|
| Applications | General Purpose |
| Capacitance | 8200 µF |
| Height - Seated (Max) | 2.047 in |
| Lead Spacing | 0.394 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 2.9 A, 3.3 A |
| Size / Dimension Diameter | 0.866 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
