Description
General part information

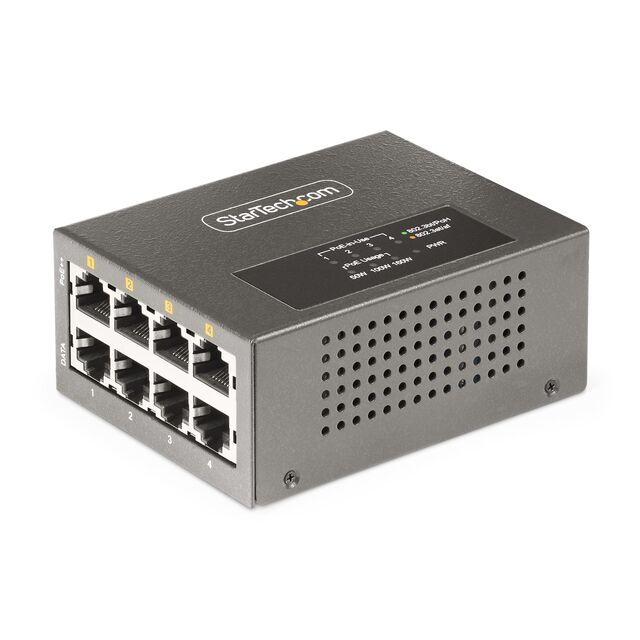

AS445C-POE-INJECTOR
54V Power Over Ethernet (POE) 4 Port Midspan Injector 10/100/1000 Mbps, 2.5Gbps, 5Gbps Data Rate
Technical Specifications
Parameters and characteristics for this part
| Specification | AS445C-POE-INJECTOR |
|---|---|
| Compliance | IEEE 802.3af, IEEE802.3at, IEEE802.3bt |
| Current - Output | 3.3 A |
| Data Rate | 5Gbps, 2.5Gbps, 1000 Mbps, 5 Gbps, 2.5 Gbps, 100 Mbps, 10 Mbps |
| Data Rate | 100 Mbps, 1000 Mbps, 10 Mbps, 5 Gbps, 2.5 Gbps |
| Input Connector | RJ45 (Data, Power) |
| Maximum Data Rate | 1000 Mbps |
| Minimum Data Rate | 10 Mbps |
| Mounting Type | Desktop |
| Note | AC Power Cord Included |
| Number of Ports | 4 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Power), RJ45 (Data |
| Power (Watts) - Per Port | 178 W |
| Size / Dimension Height | 1.5 in |
| Size / Dimension Length | 3.7 in |
| Size / Dimension Width | 2.8 in |
| Type | Midspan Injector |
| Typical Data Rate | 100 Mbps |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output | 54 V |
