1-967621-6
ActiveTE Connectivity AMP Connectors

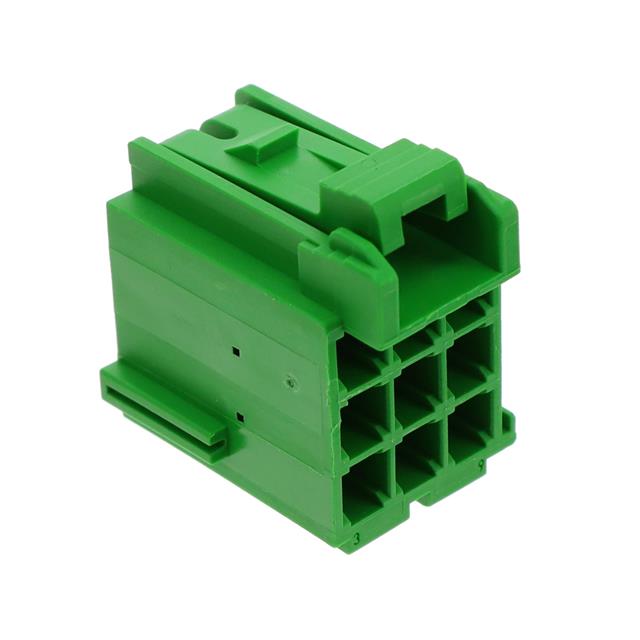

AUTOMOTIVE HOUSING, RCPT, 9POS, GREEN ROHS COMPLIANT: YES
1-967621-6
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE HOUSING, RCPT, 9POS, GREEN ROHS COMPLIANT: YES
Description
General part information
967621 Series
9 Position Housing, Housing for Female Terminals, Wire-to-Wire, 5 mm [.197 in] Centerline, Green, Wire & Cable, Power, Junior Power Timer
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-967621-6 |
|---|---|
| Color | Green |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.197 in |
| Row Spacing | 0.217 in |
