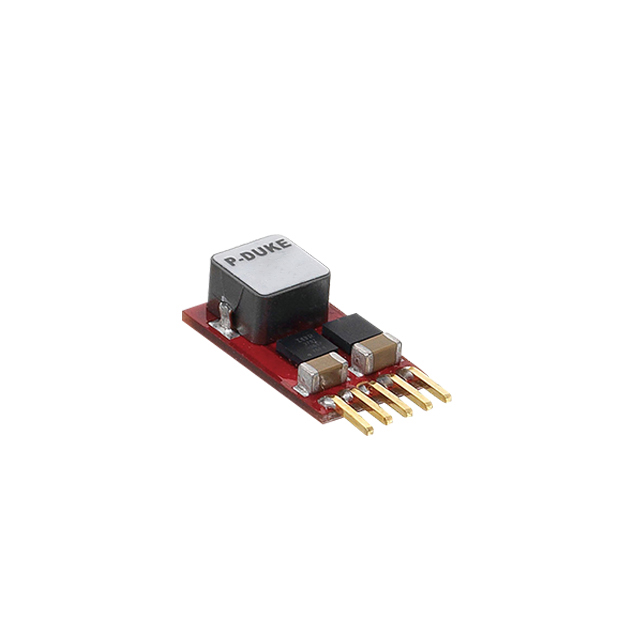

OSR03-24S05

Active

P-DUKE Technology

DC DC CONVERTER 3-6V 18W

Search across all available documentation for this part.

Active

P-DUKE Technology

DC DC CONVERTER 3-6V 18W

Technical Specifications

Parameters and characteristics for this part

Specification	OSR03-24S05

Applications	ITE (Commercial)
Approval Agency	CE
Control Features	Active High, Enable
Current - Output (Max) [Max]	3 A
Efficiency	91 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	5-SIP Module
Power (Watts)	18 W
Size / Dimension [x]	10.4 mm
Size / Dimension [x]	0.41 "
Size / Dimension [y]	0.24 "
Size / Dimension [y]	6 mm
Size / Dimension [z]	16.5 mm
Size / Dimension [z]	0.65 in
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	30 V
Voltage - Input (Min) [Min]	10 VDC
Voltage - Output 1 [Max]	6 V
Voltage - Output 1 [Min]	3 V

DC DC CONVERTER 3-6V 18W

Part	Efficiency	Voltage - Input (Min) [Min]	Applications	Voltage - Input (Max) [Max]	Mounting Type	Current - Output (Max) [Max]	Control Features	Approval Agency	Package / Case	Number of Outputs	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]
P-DUKE Technology OSR03-24S05	91 %	10 VDC	ITE (Commercial)	30 V	Through Hole	3 A	Active High, Enable	CE	5-SIP Module	1	18 W	10.4 mm	0.24 "	6 mm	16.5 mm	0.65 in	0.41 "	Non-Isolated PoL Module	Adjustable Output, Remote On/Off	85 °C	-40 °C	3 V	6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 3 ~ 6V 3A 10V - 30V Input
