CB1.37-IPXLK-SAF3GT-6IN

Active

Lighthorse Technologies, Inc

CBL ASSY IPEX MHF1 LK-SMA J-P 6"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CB1.37-IPXLK-SAF3GT-6IN

Active

Lighthorse Technologies, Inc

CBL ASSY IPEX MHF1 LK-SMA J-P 6"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.47
		10	$ 10.80
		25	$ 10.20
		50	$ 9.66
		100	$ 9.18
		250	$ 8.35
		500	$ 7.65
		1000	$ 7.06

Description

General part information

CB1.37 Series

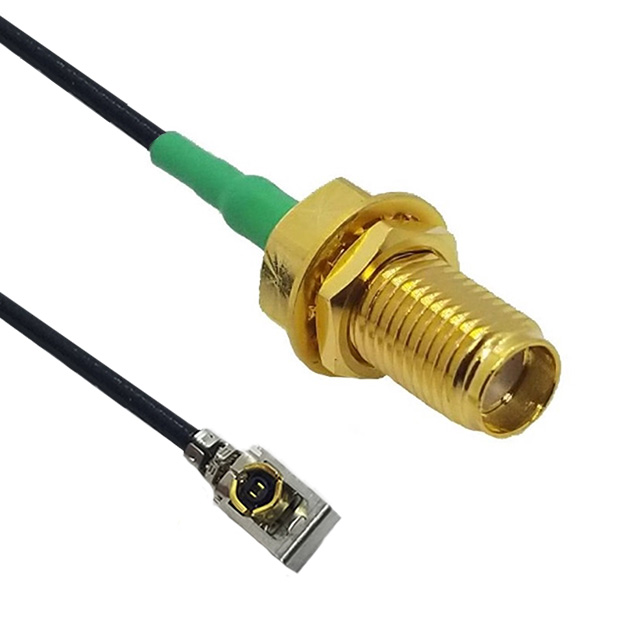

Cable Assembly Coaxial IPEX MHF1 to SMA 1.37mm OD Coaxial Cable 6.000" (152.40mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CB1.37-IPXLK-SAF3GT-6IN	CB1.37 Series

1st Connector	SMA Jack	Right Angle, IPEX MHF1 Plug, U.FL (UMCC), SMA Plug, RP-SMA Plug, SMA Jack, I-PEX MHF1 Plug, RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Free Hanging (In-Line), Panel Mount
1st Contact Gender	Female	Female, Male
2nd Connector	IPEX MHF1 LK (Locking) Plug, Right Angle	U.FL (UMCC), IPEX MHF1 Plug, Right Angle, Right Angle, I-PEX MHF1 Plug, U.FL (UMCC), I-PEX MHF1 LK (Locking) Plug, Right Angle, IPEX MHF1 LK (Locking) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female
Cable Impedance	50 Ohms	50 Ohms
Cable Type [diameter]	1.37 mm	1.37 mm
Color	Black	Blue, Black
Features	Locking	Opposite Orientation, Shielded, Locking
Frequency - Max [Max]	6000 MHz	9 - 6000 GHz
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Length	152.4 mm	38.1 - 304.8 mm
Length	6 in	1.5 - 12 "
Length	-	25.4 - 317.5 mm
Length	-	1 - 12.5 in
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overall Impedance	50 Ohms	50 Ohms
Style	IPEX MHF1 to SMA	IPEX MHF1 to U.FL (UMCC), U.FL (UMCC), IPEX MHF1, I-PEX MHF4L LK to SMA, I-PEX MHF4L LK to RP-SMA, I-PEX MHF1 to U.FL (UMCC), I-PEX MHF1, I-PEX MHF1 to SMA, IPEX MHF1 to RP-SMA, IPEX MHF1 to SMA, I-PEX MHF1 to RP-SMA

CB1.37 Series

CBL ASSY IPEX MHF1 PLUG-PLUG 11"

Part	Color	Length	Length	2nd Contact Gender	1st Contact Gender	Operating Temperature [Max]	Operating Temperature [Min]	Style	Cable Type [diameter]	Features	Frequency - Max [Max]	1st Connector Mounting Type	1st Connector	Overall Impedance	2nd Connector Mounting Type	2nd Connector	Cable Impedance	1st Connector Mounting Feature	Ingress Protection
Lighthorse Technologies, Inc CB1.37-2IPX-11IN-6O	Blue	279.4 mm	11 "	Female	Female	90 °C	-40 °C	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	1.37 mm	Opposite Orientation, Shielded	9 GHz	Free Hanging (In-Line)	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	50 Ohms	Free Hanging (In-Line)	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms
Lighthorse Technologies, Inc CB1.37-IPX4LLK-SAMGT-6IN	Black	152.4 mm	6 in	Female	Male	90 °C	-40 °C	I-PEX MHF4L LK to SMA	1.37 mm	Locking	6000 MHz	Free Hanging (In-Line)	SMA Plug	50 Ohms	Free Hanging (In-Line)		50 Ohms
Lighthorse Technologies, Inc CB1.37-IPX4LLK-SARMGT-10IN	Black	254 mm	10 in	Female	Female	90 °C	-40 °C	I-PEX MHF4L LK to RP-SMA	1.37 mm	Locking	6000 MHz	Free Hanging (In-Line)	RP-SMA Plug	50 Ohms	Free Hanging (In-Line)		50 Ohms
Lighthorse Technologies, Inc CB1.37-IPX4LLK-SAF3OGTX15-4IN	Black	101.6 mm	4 in	Female	Female	90 °C	-40 °C	I-PEX MHF4L LK to SMA	1.37 mm	Locking	6000 MHz	Panel Mount	SMA Jack	50 Ohms	Free Hanging (In-Line)		50 Ohms	Bulkhead - Front Side Nut	IP67 - Dust Tight, Waterproof
Lighthorse Technologies, Inc CB1.37-2IPX-2IN-6O	Blue	50.8 mm	2 in	Female	Female	90 °C	-40 °C	I-PEX MHF1, I-PEX MHF1 to U.FL (UMCC), U.FL (UMCC)	1.37 mm	Opposite Orientation, Shielded	9 GHz	Free Hanging (In-Line)	I-PEX MHF1 Plug, Right Angle, U.FL (UMCC)	50 Ohms	Free Hanging (In-Line)	I-PEX MHF1 Plug, Right Angle, U.FL (UMCC)	50 Ohms
Lighthorse Technologies, Inc CB1.37-IPX4LLK-SAF3GT-4IN	Black	101.6 mm	4 in	Female	Female	90 °C	-40 °C	I-PEX MHF4L LK to SMA	1.37 mm	Locking	6000 MHz	Panel Mount	SMA Jack	50 Ohms	Free Hanging (In-Line)		50 Ohms	Bulkhead - Front Side Nut
Lighthorse Technologies, Inc CB1.37-IPX4LLK-SAF3GT-6IN	Black	152.4 mm	6 in	Female	Female	90 °C	-40 °C	I-PEX MHF4L LK to SMA	1.37 mm	Locking	6000 MHz	Panel Mount	SMA Jack	50 Ohms	Free Hanging (In-Line)		50 Ohms	Bulkhead - Front Side Nut
Lighthorse Technologies, Inc CB1.37-IPXLK-SAF3OGTX15-10IN	Black	254 mm	10 in	Female	Female	90 °C	-40 °C	I-PEX MHF1 to SMA	1.37 mm	Locking	6000 MHz	Panel Mount	SMA Jack	50 Ohms	Free Hanging (In-Line)	I-PEX MHF1 LK (Locking) Plug, Right Angle	50 Ohms	Bulkhead - Front Side Nut	IP67 - Dust Tight, Waterproof
Lighthorse Technologies, Inc CB1.37-IPX4LLK-SARF3OGTX9-4IN	Black	101.6 mm	4 in	Female	Male	90 °C	-40 °C	I-PEX MHF4L LK to RP-SMA	1.37 mm	Locking	6000 MHz	Panel Mount	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)		50 Ohms	Bulkhead - Front Side Nut	IP67 - Dust Tight, Waterproof
Lighthorse Technologies, Inc CB1.37-2IPX-9.5IN-6O	Blue	241.3 mm	9.5 in	Female	Female	90 °C	-40 °C	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	1.37 mm	Opposite Orientation, Shielded	9 GHz	Free Hanging (In-Line)	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	50 Ohms	Free Hanging (In-Line)	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms
