Q1975739
ObsoleteSusumu
RESISTOR KIT 12-100 1/3W 120PCS
Deep-Dive with AI
Search across all available documentation for this part.
Q1975739
ObsoleteSusumu
RESISTOR KIT 12-100 1/3W 120PCS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | Q1975739 | - Series |
|---|---|---|
| Features | - | Automotive AEC-Q200 |
| Kit Type | Metal Film | Thin Film, Metal Film |
| Mounting Type | Surface Mount | Surface Mount |
| Packages Included | 0805 (2012 Metric) | 0805 (2012 Metric), 0603 (1608 Metric) |
| Power (Watts) | 0.3333333333333333 W | 0.0625 - 0.3333333333333333 W |
| Quantity | 120 Pieces | 120 - 500 Pieces |
| Resistance (Ohms) | - | 22k |
| Resistance (Ohms) | - | 470k |
| Resistance (Ohms) [Max] | 100 Ohms | 1 - 910 kOhms |
| Resistance (Ohms) [Min] | 12 Ohms | 0.1 - 100 kOhms |
| Tolerance | 1 % | 0.05 - 1 % |
- Series
RESISTR KIT 22K-470K 1/8W 330PCS
| Part | Kit Type | Resistance (Ohms) [Min] | Resistance (Ohms) [Max] | Features | Packages Included | Quantity | Power (Watts) | Mounting Type | Tolerance | Resistance (Ohms) [Max] | Resistance (Ohms) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|
Susumu Q1970559 | Thin Film | 22k | 470k | Automotive AEC-Q200 | 0805 (2012 Metric) | 330 Pieces | 0.125 W | Surface Mount | 0.05 % | ||
Susumu Q1973139 | Thin Film | 0603 (1608 Metric) | 500 Pieces | 0.0625 W | Surface Mount | 0.1 % | 15 kOhms | 3.92 kOhms | |||
Susumu Q1975467 | Metal Film | 0603 (1608 Metric) | 330 Pieces | 0.2 W | Surface Mount | 1 % | 68 Ohms | 0.1 Ohms | |||
Susumu Q1975780 | Metal Film | 0805 (2012 Metric) | 250 Pieces | 0.3333333333333333 W | Surface Mount | 1 % | 10 Ohms | 0.1 Ohms | |||
Susumu Q1973448 | Thin Film | 0603 (1608 Metric) | 500 Pieces | 0.0625 W | Surface Mount | 0.1 % | 75 kOhms | 15.4 kOhms | |||
Susumu Q1971419 | Thin Film | 0805 (2012 Metric) | 500 Pieces | 0.1 W | Surface Mount | 0.1 % | 88.7 Ohms | 21.5 Ohms | |||
Susumu Q1970613 | Thin Film | 0805 (2012 Metric) | 500 Pieces | 0.1 W | Surface Mount | 0.1 % | 1.02 kOhms | 100 Ohms | |||
Susumu Q1973538 | Thin Film | 0603 (1608 Metric) | 370 Pieces | 0.0625 W | Surface Mount | 0.1 % | |||||
Susumu Q1973039 | Thin Film | 0603 (1608 Metric) | 500 Pieces | 0.0625 W | Surface Mount | 0.1 % | 3.9 kOhms | 1.05 kOhms | |||
Susumu Q1970466 | Thin Film | Automotive AEC-Q200 | 0805 (2012 Metric) | 320 Pieces | 0.125 W | Surface Mount | 0.05 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
- Series

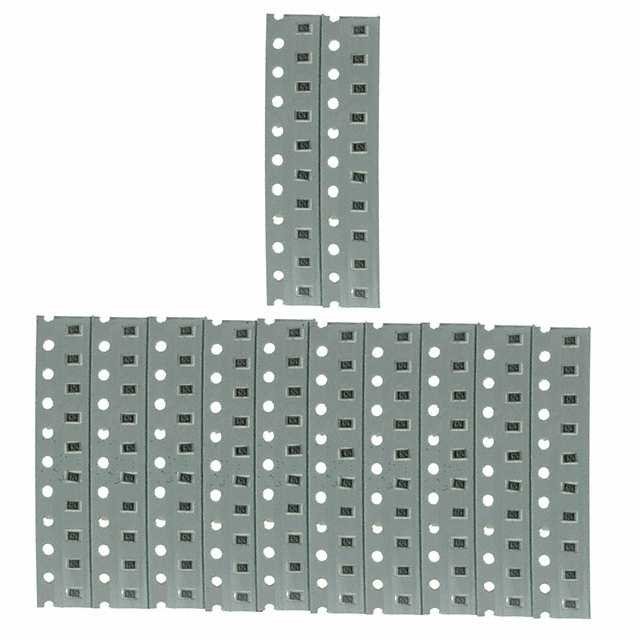

Metal Film Resistor Kit 12 ~ 100 Ohm ±1% 1/3W Surface Mount 120 Pieces (12 Values - 10 Each)
