PBC05SBDN

Active

Sullins Connector Solutions

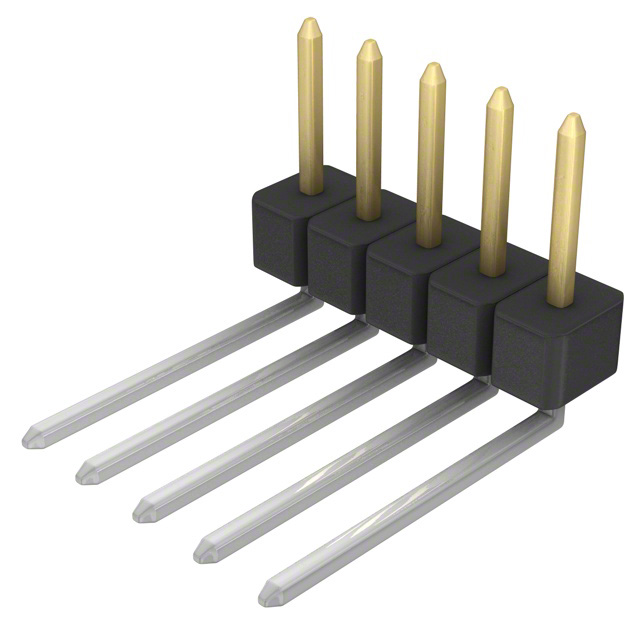

CONN HEADER R/A 5POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC05SBDN

Active

Sullins Connector Solutions

CONN HEADER R/A 5POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC05SBDN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.4 in
Contact Length - Post [x]	10.16 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC05 Series

Part	Number of Positions Loaded	Mounting Type	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Number of Rows	Contact Shape	Fastening Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Contact Length - Post	Contact Length - Post	Connector Type	Overall Contact Length	Overall Contact Length	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Termination	Insulation Height	Insulation Height	Contact Finish - Post	Contact Type	Contact Finish - Mating	Shrouding	Contact Length - Mating [x]	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]
Sullins Connector Solutions PBC05DAFN	All	Through Hole	Phosphor Bronze	2.54 mm	0.1 in	125 °C	-65 ░C	3 A	2	Square	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Black	2.54 µm	100 µin	Board to Board Cable	0.62 in	15.75 mm	Breakaway Header	24.13 mm	0.95 in	10	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Solder	0.1 in	2.54 mm	Tin	Male Pin	Gold	Unshrouded	0.23 in	5.84 mm
Sullins Connector Solutions PBC05SBAN	All	Through Hole Right Angle	Phosphor Bronze			125 °C	-65 ░C	3 A	1	Square	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Black	2.54 µm	100 µin	Board to Board Cable	0.1 in	2.54 mm	Breakaway Header				10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Solder	0.14 in	3.56 mm	Tin	Male Pin	Gold	Unshrouded	0.23 in	5.84 mm
Sullins Connector Solutions PBC05DAHN	All	Through Hole	Phosphor Bronze	2.54 mm	0.1 in	125 °C	-65 ░C	3 A	2	Square	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Black	2.54 µm	100 µin	Board to Board Cable			Breakaway Header	29.21 mm	1.15 in	10	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Solder	0.1 in	2.54 mm	Tin	Male Pin	Gold	Unshrouded	0.23 in	5.84 mm	20.83 mm	0.82 in
Sullins Connector Solutions PBC05DGAN	All	Through Hole Right Angle	Phosphor Bronze	2.54 mm	0.1 in	125 °C	-65 ░C	3 A	2	Square	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Black	2.54 µm	100 µin	Board to Board Cable	0.1 in	2.54 mm	Breakaway Header			10	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Solder	0.24 in	6.1 mm	Tin	Male Pin	Gold	Unshrouded	0.318 "				8.08 mm
Sullins Connector Solutions PBC05SAHN	All	Through Hole	Phosphor Bronze			125 °C	-65 ░C	3 A	1	Square	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Black	2.54 µm	100 µin	Board to Board Cable			Breakaway Header	29.21 mm	1.15 in		10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Solder	0.1 in	2.54 mm	Tin	Male Pin	Gold	Unshrouded	0.23 in	5.84 mm	20.83 mm	0.82 in
Sullins Connector Solutions PBC05SAGN	All	Through Hole	Phosphor Bronze			125 °C	-65 ░C	3 A	1	Square	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Black	2.54 µm	100 µin	Board to Board Cable			Breakaway Header	26.67 mm	1.05 in		10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Solder	0.1 in	2.54 mm	Tin	Male Pin	Gold	Unshrouded	0.23 in	5.84 mm	18.29 mm	0.72 "
Sullins Connector Solutions PBC05SGBN	All	Through Hole Right Angle	Phosphor Bronze			125 °C	-65 ░C	3 A	1	Square	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Black	2.54 µm	100 µin	Board to Board Cable			Breakaway Header				10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Solder	0.14 in	3.56 mm	Tin	Male Pin	Gold	Unshrouded	0.318 "		5.08 mm	0.2 in	8.08 mm
Sullins Connector Solutions PBC05SBDN	All	Through Hole Right Angle	Phosphor Bronze			125 °C	-65 ░C	3 A	1	Square	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Black	2.54 µm	100 µin	Board to Board Cable			Breakaway Header				10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Solder	0.14 in	3.56 mm	Tin	Male Pin	Gold	Unshrouded	0.23 in	5.84 mm	10.16 mm	0.4 in
Sullins Connector Solutions PBC05DFDN	All	Through Hole	Phosphor Bronze	2.54 mm	0.1 in	125 °C	-65 ░C	3 A	2	Square	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Black	2.54 µm	100 µin	Board to Board Cable			Breakaway Header	21.29 mm	0.838 in	10	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Solder	0.1 in	2.54 mm	Tin	Male Pin	Gold	Unshrouded	0.318 "		10.67 mm	0.42 in	8.08 mm
Sullins Connector Solutions PBC05SAAN	All	Through Hole	Phosphor Bronze			125 °C	-65 ░C	3 A	1	Square	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Black	2.54 µm	100 µin	Board to Board Cable			Breakaway Header	11.43 mm	0.45 "		10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Solder	0.1 in	2.54 mm	Tin	Male Pin	Gold	Unshrouded	0.23 in	5.84 mm	3.05 mm	0.12 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.83
		10	$ 0.70
		100	$ 0.63
		500	$ 0.52
		1000	$ 0.46
		5000	$ 0.41

Description

General part information

PBC05 Series

Connector Header Through Hole, Right Angle 5 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
