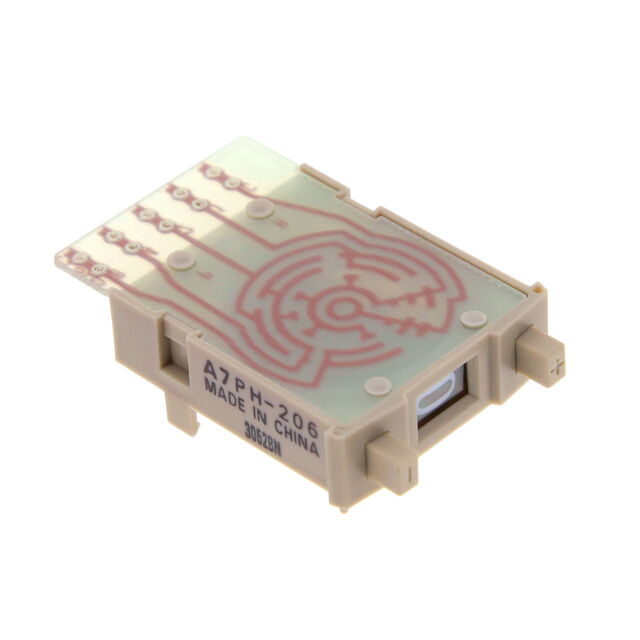

A7PH-206

Active

Omron Electronics Inc-EMC Div

SWITCH THUMB BCD 0.15A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH THUMB BCD 0.15A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A7PH-206	A7PH Series

Actuator Type	Pushwheel	Pushwheel
Color	Light Gray	Black, Light Gray
Contact Rating @ Voltage	0.15 A	0.15 A
Depth Behind Flange	43 mm	43 - 55 mm
Display Characters - Height [z]	0.268 in	0.157 - 0.268 in
Display Characters - Height [z]	6.8 mm	4 - 6.8 mm
Electrical Life	1000000 Cycles	1000000 Cycles
End Caps	Sold Separately	Sold Separately
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Number of Sections	1	1
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-10 °C	-10 °C
Output Code	BCD	BCD, Decimal, Hexadecimal
Read Out	-	F, 9
Read Out	-	0, A
Read Out [Max]	9	9
Read Out [Min]	0	0
Section Width [x]	0.394 in	0.394 in
Section Width [x]	10 mm	10 mm
Termination Style	Solder Pad, Card Edge	Card Edge/Solder Pad with Component Mounting, Solder Pad, Card Edge

SWITCH THUMB BCD 0.15A 125V

Part	Number of Sections	Depth Behind Flange	Display Characters - Height [z]	Display Characters - Height [z]	Actuator Type	Output Code	Section Width [x]	Section Width [x]	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Contact Rating @ Voltage	End Caps	Mounting Type	Read Out [Min]	Read Out [Max]	Color	Read Out [Max]	Read Out [Min]
Omron Electronics Inc-EMC Div A7PH-207-1	1	55 mm	0.268 in	6.8 mm	Pushwheel	BCD	0.394 in	10 mm	Card Edge/Solder Pad with Component Mounting	-10 °C	65 °C	1000000 Cycles	0.15 A	Sold Separately	Panel Mount, Snap-In	0	9	Black
Omron Electronics Inc-EMC Div A7PH-203	1	43 mm	0.268 in	6.8 mm	Pushwheel	Decimal	0.394 in	10 mm	Card Edge, Solder Pad	-10 °C	65 °C	1000000 Cycles	0.15 A	Sold Separately	Panel Mount, Snap-In	0	9	Light Gray
Omron Electronics Inc-EMC Div A7PH-206	1	43 mm	0.268 in	6.8 mm	Pushwheel	BCD	0.394 in	10 mm	Card Edge, Solder Pad	-10 °C	65 °C	1000000 Cycles	0.15 A	Sold Separately	Panel Mount, Snap-In	0	9	Light Gray
Omron Electronics Inc-EMC Div A7PH-254	1	43 mm	0.157 in	4 mm	Pushwheel	Hexadecimal	0.394 in	10 mm	Card Edge, Solder Pad	-10 °C	65 °C	1000000 Cycles	0.15 A	Sold Separately	Panel Mount, Snap-In			Light Gray	9, F	0, A
