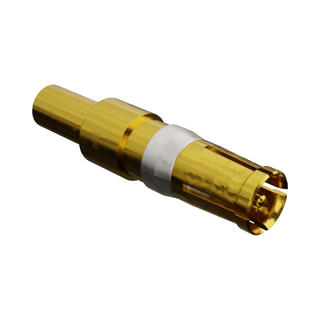

Specification	1731140199

Contact Finish	Gold
Contact Finish Thickness	51.2 µin
Contact Form	Machined
Contact Material	Copper Alloy
Contact Size	8
Contact Termination	Crimp
Contact Type	Female Socket
Termination Finish	Gold
Termination Finish Thickness	7.87 µin
Type	Coaxial
Wire Gauge	316, 188, RG-174

173114 Series

...

Part	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Contact Material	Color	Features	Number of Rows	Connector Type	Contact Type	Current Rating	Primary Material	Finish	Shell Material	Mounting Type	Shell Size, Connector Layout	Connector Style	Material Flammability Rating	Termination	Number of Positions	Flange Feature	Number of Positions	Hardware	Material	Plating	Accessory Type	Shielding	Cable Type	Cable Exit Angle	Number of Positions (Total)	Number of Positions (Normal)	Number of Positions (Power)	Housing Color	Convert From (Adapter End) Pin Count	Convert From (Adapter End) Pin Gender	Convert From (Adapter End) Type	Convert To (Adapter End) Pin Count	Convert To (Adapter End)
Molex 1731141002	-55 °C	130 °C	Glass Filled Polyester	Copper Alloy	Black	Board Lock	2	Female Sockets Receptacle	Signal	5 A	Metal	Tin-Nickel Plated	Steel	Right Angle Through Hole	2 (DA A)	D-Sub - Stacked	UL94 V-0	Solder	15	Housing Shell (M3)
Molex 1731140858
Molex 1731140274	-55 °C	130 °C	Glass Filled Polyester	Copper Alloy	Black	Board Lock	2	Female Socket Male Pins Plug Receptacle	Signal	5 A	Metal	Tin-Nickel Plated	Steel	Right Angle Through Hole	1 (DE E)	D-Sub - Stacked	UL94 V-0	Solder	9	Board Side (4-40)	9
Molex 1731140386					Silver	Dust Tight/Waterproof (IP67)					Plastic								9			Assembly Hardware Cable Clamp Strain Relief	Acrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Nickel	One Piece Backshell	Shielded	Round	180 °
Molex 1731140431
Molex 1731140993					Silver	Mating Screws					Metal											Assembly Hardware Cable Clamp Strain Relief	Zinc Die Cast	Nickel	Two Piece Backshell	Shielded	Round	180 °	7	5	2
Molex 1731140230
Molex 1731140078							2							Free Hanging (In-Line) Right Angle		Connector Saver										Shielded						White	15 pins	Female	D-Sub	15 pins	D-Sub Pin Male
Molex 1731140430
Molex 1731140308
