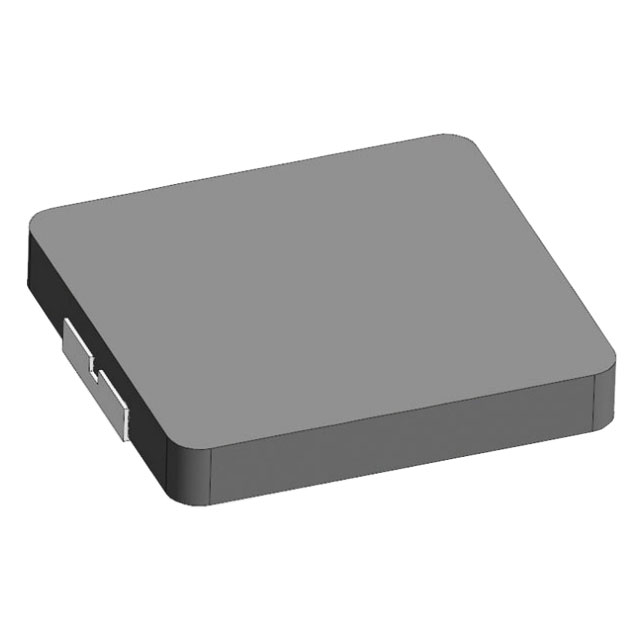

AMPLA7012S-3R3MT
ActiveAbracon LLC
INDUCTOR POWER MOLDED/SHIELDED WIREWOUND 3.3UH 20% 100KHZ CARBONYL POWDER 3.2A 0.103OHM DCR T/R
AMPLA7012S-3R3MT
ActiveAbracon LLC
INDUCTOR POWER MOLDED/SHIELDED WIREWOUND 3.3UH 20% 100KHZ CARBONYL POWDER 3.2A 0.103OHM DCR T/R
Description
General part information
AMPLA7012S-3R3MT
3.3 µH Shielded Molded Inductor 3.2 A 103mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | AMPLA7012S-3R3MT |
|---|---|
| Current - Saturation (Isat) | 4 A |
| Current Rating | 3.2 A |
| DC Resistance (DCR) (Max) | 103 mOhm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Carbonyl Powder |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.26 in |
| Tolerance | 20 % |
| Type | Molded |
