828801-2
ActiveTE Connectivity AMP Connectors

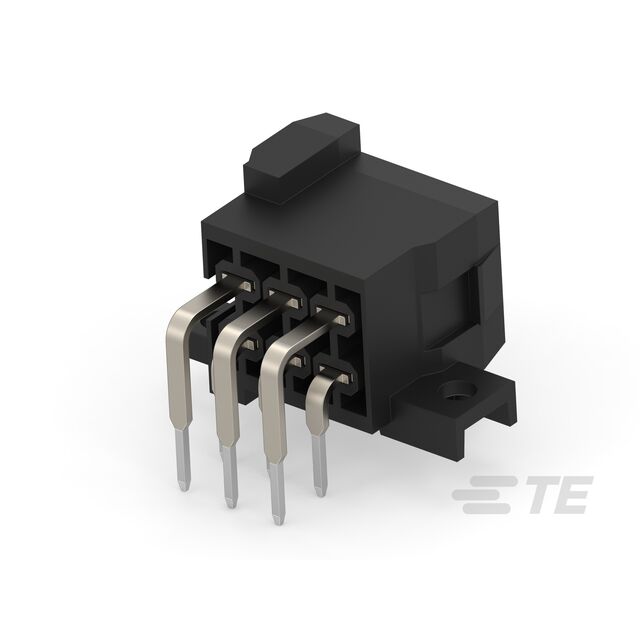

CONN HEADER R/A 6POS 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
828801-2
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 6POS 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 828801-2 | 828801 Series |
|---|---|---|
| Connector Type | Plug | Plug |
| Contact Finish - Post | Tin | Tin |
| Contact Length - Mating | 0.366 in | 0.366 in |
| Contact Length - Mating | 9.3 mm | 9.3 mm |
| Contact Length - Post | 3.5 mm | 3.5 mm |
| Contact Length - Post | 0.138 in | 0.138 in |
| Contact Material | Brass | Brass |
| Contact Shape | Rectangular | Rectangular |
| Contact Type | Tab | Tab |
| Features | Mounting Flange | Mounting Flange |
| Insulation Color | Black | Black |
| Insulation Height | 19 mm | 19 mm |
| Insulation Height | 0.748 in | 0.748 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 | UL94 V-2 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 6 | 6 - 18 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 5 mm | 5 mm |
| Pitch - Mating | 0.197 " | 0.197 " |
| Row Spacing - Mating | 5 mm | 5 mm |
| Row Spacing - Mating | 0.197 in | 0.197 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
828801 Series
CONN HEADER R/A 18POS 5MM
| Part | Pitch - Mating | Pitch - Mating | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Post | Insulation Height | Insulation Height | Contact Type | Contact Length - Post | Contact Length - Post | Connector Type | Number of Positions Loaded | Material Flammability Rating | Insulation Material | Contact Shape | Row Spacing - Mating | Row Spacing - Mating | Features | Contact Length - Mating | Contact Length - Mating | Termination | Contact Material | Number of Positions | Mounting Type | Style | Number of Rows | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 828801-6 | 5 mm | 0.197 " | Black | 105 ░C | -55 °C | Tin | 19 mm | 0.748 in | Tab | 3.5 mm | 0.138 in | Plug | All | UL94 V-2 | Polyamide (PA66), Nylon 6/6 | Rectangular | 5 mm | 0.197 in | Mounting Flange | 0.366 in | 9.3 mm | Solder | Brass | 18 | Through Hole, Right Angle | Board to Cable/Wire | 2 | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 828801-2 | 5 mm | 0.197 " | Black | 105 ░C | -55 °C | Tin | 19 mm | 0.748 in | Tab | 3.5 mm | 0.138 in | Plug | All | UL94 V-2 | Polyamide (PA66), Nylon 6/6 | Rectangular | 5 mm | 0.197 in | Mounting Flange | 0.366 in | 9.3 mm | Solder | Brass | 6 | Through Hole, Right Angle | Board to Cable/Wire | 2 | Shrouded - 4 Wall |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.44 | |
| 10 | $ 3.96 | |||
| 100 | $ 3.51 | |||
| 588 | $ 3.23 | |||
| 1176 | $ 2.89 | |||
Description
General part information
828801 Series
Connector Header Through Hole, Right Angle 6 position 0.197" (5.00mm)
