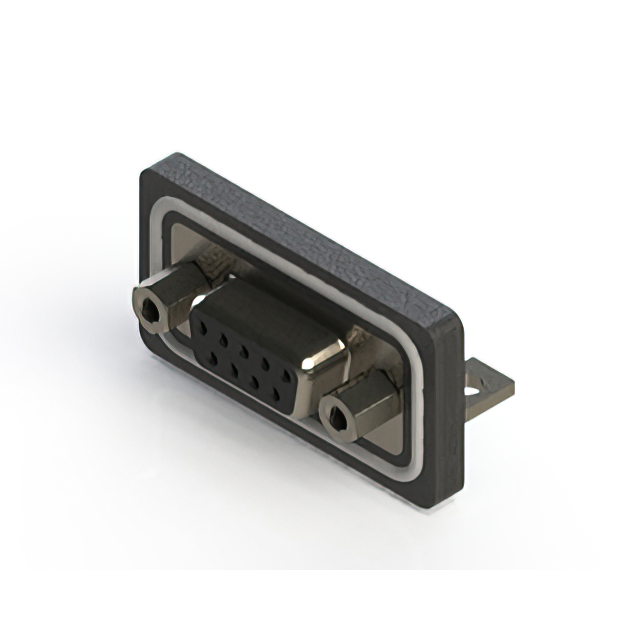

D SUB CONNECTOR, DB9, IP67, STANDARD, RECEPTACLE, 630 SERIES, 9 CONTACTS, DE, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
630-W09-240-015
ActiveEDAC Inc.
D SUB CONNECTOR, DB9, IP67, STANDARD, RECEPTACLE, 630 SERIES, 9 CONTACTS, DE, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 630-W09-240-015 |
|---|---|
| Backset Spacing | 0.406 in |
| Backset Spacing | 10.3 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Mounting Brackets |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
