7282-3PG-300
ActiveConxall/Switchcraft

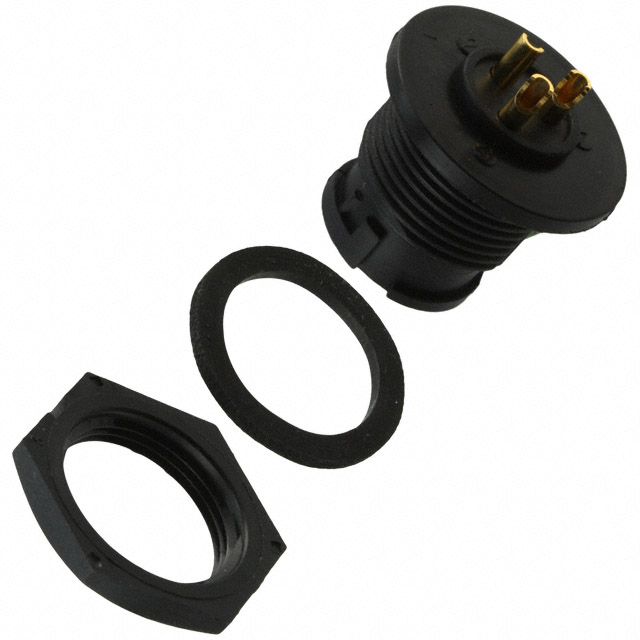

CONN RCPT MALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
7282-3PG-300
ActiveConxall/Switchcraft
CONN RCPT MALE 3P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 7282-3PG-300 | 7282-3PG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
7282-3PG Series
CONN RCPT MALE 3P GOLD SLDR CUP
| Part | Orientation | Applications | Ingress Protection | Shielding | Backshell Material, Plating | Mounting Feature | Current Rating (Amps) | Primary Material | Voltage Rating | Fastening Type | Connector Type | Contact Finish - Mating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 7282-3PG-300 | Keyed | Automotive, Communication Systems, Instrumentation | Weathertight | Unshielded | Nylon, Polyamide (PA) | Bulkhead - Front Side Nut | Varies by Wire Gauge | Plastic | 600 V | Bayonet Lock | Male Pins, Receptacle | Gold | Brass | -40 °C | 115 °C | Black |
Conxall/Switchcraft 7282-3PG-3ES | Keyed | Automotive, Communication Systems, Instrumentation | Weathertight | Unshielded | Nylon, Polyamide (PA) | Bulkhead - Front Side Nut | Varies by Wire Gauge | Plastic | 600 V | Bayonet Lock | Male Pins, Receptacle | Gold | Brass | -40 °C | 115 °C | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.05 | |
| 10 | $ 6.38 | |||
| 100 | $ 5.58 | |||
| 1000 | $ 4.11 | |||
Description
General part information
7282-3PG Series
3 Position Circular Connector Receptacle, Male Pins Solder Cup
