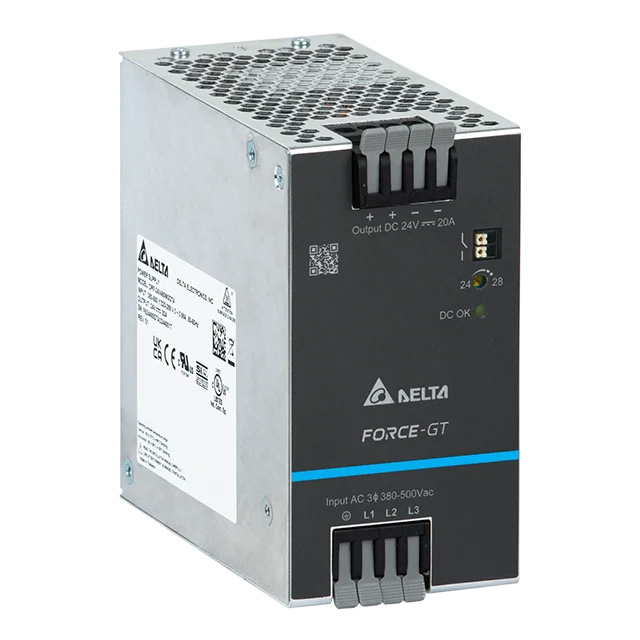

DRF-24V480W3GTA
ActiveDelta Electronics
DIN-RAIL PS 480W/24V COATED, 3PH
DRF-24V480W3GTA
ActiveDelta Electronics
DIN-RAIL PS 480W/24V COATED, 3PH
Description
General part information
DRF-24V480W3GTA
DIN-RAIL PS 480W/24V COATED, 3PH
Technical Specifications
Parameters and characteristics for this part
| Specification | DRF-24V480W3GTA |
|---|---|
| AC Voltage - Input (Max) (Range 1) | 575 VAC |
| AC Voltage - Input (Max) (Range 2) | 575 VAC |
| AC Voltage - Input (Min) (Range 1) | 320 VAC |
| AC Voltage - Input (Min) (Range 2) | 340 VAC |
| Applications | Laboratory, ITE (Commercial) |
| Approval Agency | cULus, EAC, CE, UKCA, CB, cURus, SIQ |
| Current - Output (Max) | 20 A |
| Efficiency | 94 % |
| Features | PFC, Adjustable Output |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 480 W |
| Size / Dimension Height | 4.88 in |
| Size / Dimension Length | 5.01 in |
| Size / Dimension Width | 2.56 in |
| Standard Number | 60950-1, 62368-1, 61010-1 |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 24 V |
