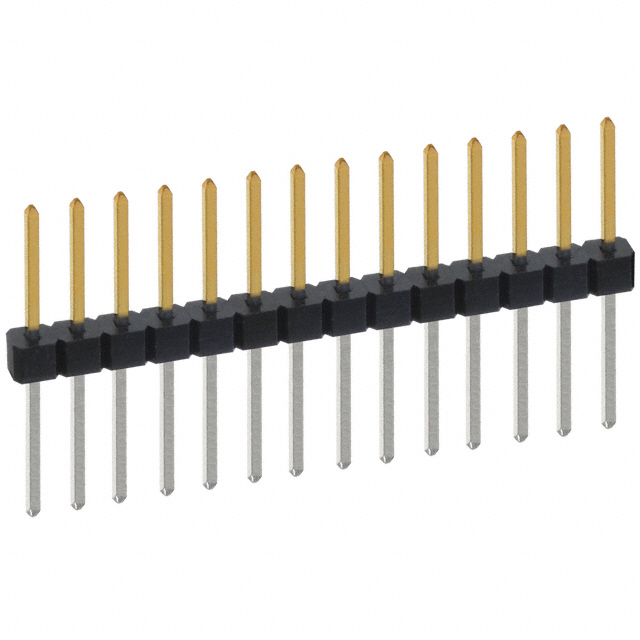

PBC14SFDN

Active

Sullins Connector Solutions

CONN HEADER VERT 14POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC14SFDN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	10.67 mm
Contact Length - Post [x]	0.42 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	21.29 mm
Overall Contact Length	0.838 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC14 Series

Part	Style	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Number of Rows	Insulation Height	Insulation Height	Termination	Mounting Type	Contact Shape	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Material	Shrouding	Current Rating (Amps)	Fastening Type	Number of Positions Loaded	Contact Material	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Overall Contact Length
Sullins Connector Solutions PBC14SFAN	Board to Board Cable	0.1 in	2.54 mm	0.538 "	13.67 mm	10 çin	0.25 çm	Male Pin	Tin	2.54 µm	100 µin	Breakaway Header	1	0.1 in	2.54 mm	Solder	Through Hole	Square	UL94 V-0	0.318 "	8.08 mm	Polybutylene Terephthalate (PBT)	Unshrouded	3 A	Push-Pull	All	Phosphor Bronze	Black	125 °C	-65 ░C	0.12 in	3.05 mm	14	Gold
Sullins Connector Solutions PBC14DAFN	Board to Board Cable	0.1 in	2.54 mm	0.95 in	24.13 mm	10 çin	0.25 çm	Male Pin	Tin	2.54 µm	100 µin	Breakaway Header	2	0.1 in	2.54 mm	Solder	Through Hole	Square	UL94 V-0	0.23 in		Polybutylene Terephthalate (PBT)	Unshrouded	3 A	Push-Pull	All	Phosphor Bronze	Black	125 °C	-65 ░C			28	Gold	2.54 mm	0.1 in	0.62 in	15.75 mm	5.84 mm
Sullins Connector Solutions PBC14SADN	Board to Board Cable	0.1 in	2.54 mm	0.75 in	19.05 mm	10 çin	0.25 çm	Male Pin	Tin	2.54 µm	100 µin	Breakaway Header	1	0.1 in	2.54 mm	Solder	Through Hole	Square	UL94 V-0	0.23 in		Polybutylene Terephthalate (PBT)	Unshrouded	3 A	Push-Pull	All	Phosphor Bronze	Black	125 °C	-65 ░C	0.42 in	10.67 mm	14	Gold					5.84 mm
Sullins Connector Solutions PBC14SBCN	Board to Board Cable	0.1 in	2.54 mm			10 çin	0.25 çm	Male Pin	Tin	2.54 µm	100 µin	Breakaway Header	1	0.14 in	3.56 mm	Solder	Through Hole Right Angle	Square	UL94 V-0	0.23 in		Polybutylene Terephthalate (PBT)	Unshrouded	3 A	Push-Pull	All	Phosphor Bronze	Black	125 °C	-65 ░C	0.3 "	7.62 mm	14	Gold					5.84 mm
Sullins Connector Solutions PBC14SABN	Board to Board Cable	0.1 in	2.54 mm	0.56 in	14.22 mm	10 çin	0.25 çm	Male Pin	Tin	2.54 µm	100 µin	Breakaway Header	1	0.1 in	2.54 mm	Solder	Through Hole	Square	UL94 V-0	0.23 in		Polybutylene Terephthalate (PBT)	Unshrouded	3 A	Push-Pull	All	Phosphor Bronze	Black	125 °C	-65 ░C			14	Gold			0.23 in	5.84 mm	5.84 mm
Sullins Connector Solutions PBC14DAAN	Board to Board Cable	0.1 in	2.54 mm	0.45 "	11.43 mm	10 çin	0.25 çm	Male Pin	Tin	2.54 µm	100 µin	Breakaway Header	2	0.1 in	2.54 mm	Solder	Through Hole	Square	UL94 V-0	0.23 in		Polybutylene Terephthalate (PBT)	Unshrouded	3 A	Push-Pull	All	Phosphor Bronze	Black	125 °C	-65 ░C	0.12 in	3.05 mm	28	Gold	2.54 mm	0.1 in			5.84 mm
Sullins Connector Solutions PBC14DAEN	Board to Board Cable	0.1 in	2.54 mm	0.85 in	21.59 mm	10 çin	0.25 çm	Male Pin	Tin	2.54 µm	100 µin	Breakaway Header	2	0.1 in	2.54 mm	Solder	Through Hole	Square	UL94 V-0	0.23 in		Polybutylene Terephthalate (PBT)	Unshrouded	3 A	Push-Pull	All	Phosphor Bronze	Black	125 °C	-65 ░C			28	Gold	2.54 mm	0.1 in	0.52 "	13.21 mm	5.84 mm
Sullins Connector Solutions PBC14SACN	Board to Board Cable	0.1 in	2.54 mm		0.65 in	10 çin	0.25 çm	Male Pin	Tin	2.54 µm	100 µin	Breakaway Header	1	0.1 in	2.54 mm	Solder	Through Hole	Square	UL94 V-0	0.23 in		Polybutylene Terephthalate (PBT)	Unshrouded	3 A	Push-Pull	All	Phosphor Bronze	Black	125 °C	-65 ░C	0.32 in	8.13 mm	14	Gold					5.84 mm	16.51 mm
Sullins Connector Solutions PBC14SFDN	Board to Board Cable	0.1 in	2.54 mm	0.838 in	21.29 mm	10 çin	0.25 çm	Male Pin	Tin	2.54 µm	100 µin	Breakaway Header	1	0.1 in	2.54 mm	Solder	Through Hole	Square	UL94 V-0	0.318 "	8.08 mm	Polybutylene Terephthalate (PBT)	Unshrouded	3 A	Push-Pull	All	Phosphor Bronze	Black	125 °C	-65 ░C	0.42 in	10.67 mm	14	Gold
Sullins Connector Solutions PBC14SBDN	Board to Board Cable	0.1 in	2.54 mm			10 çin	0.25 çm	Male Pin	Tin	2.54 µm	100 µin	Breakaway Header	1	0.14 in	3.56 mm	Solder	Through Hole Right Angle	Square	UL94 V-0	0.23 in		Polybutylene Terephthalate (PBT)	Unshrouded	3 A	Push-Pull	All	Phosphor Bronze	Black	125 °C	-65 ░C	0.4 in	10.16 mm	14	Gold					5.84 mm
